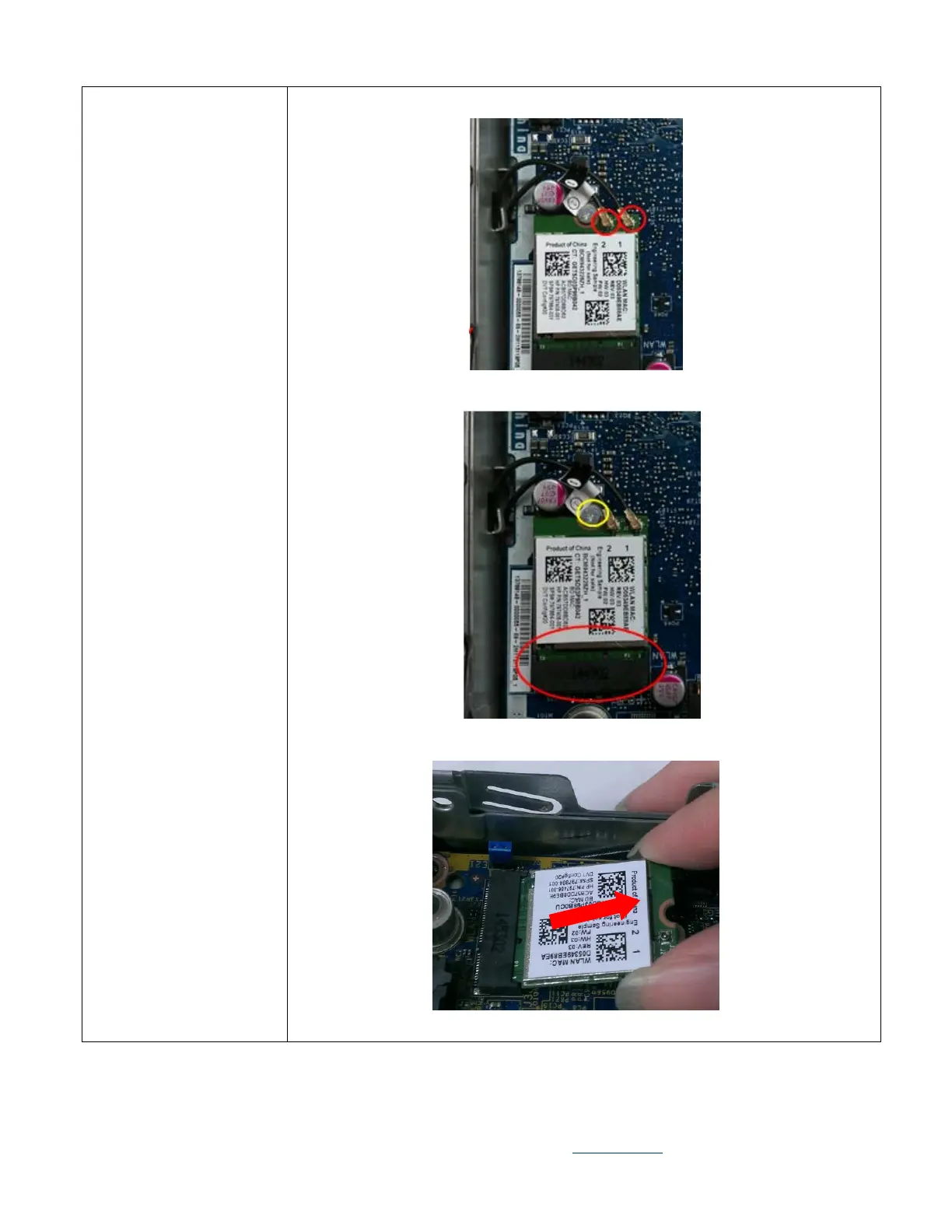

5. Remove WLAN Card from M/B
1
Pull out antenna
from WLAN card as
photo1 shown
2
3
Release 1 screws
from M/B as photo2
shown
Remove WLAN card
as photo3 shown
