5.

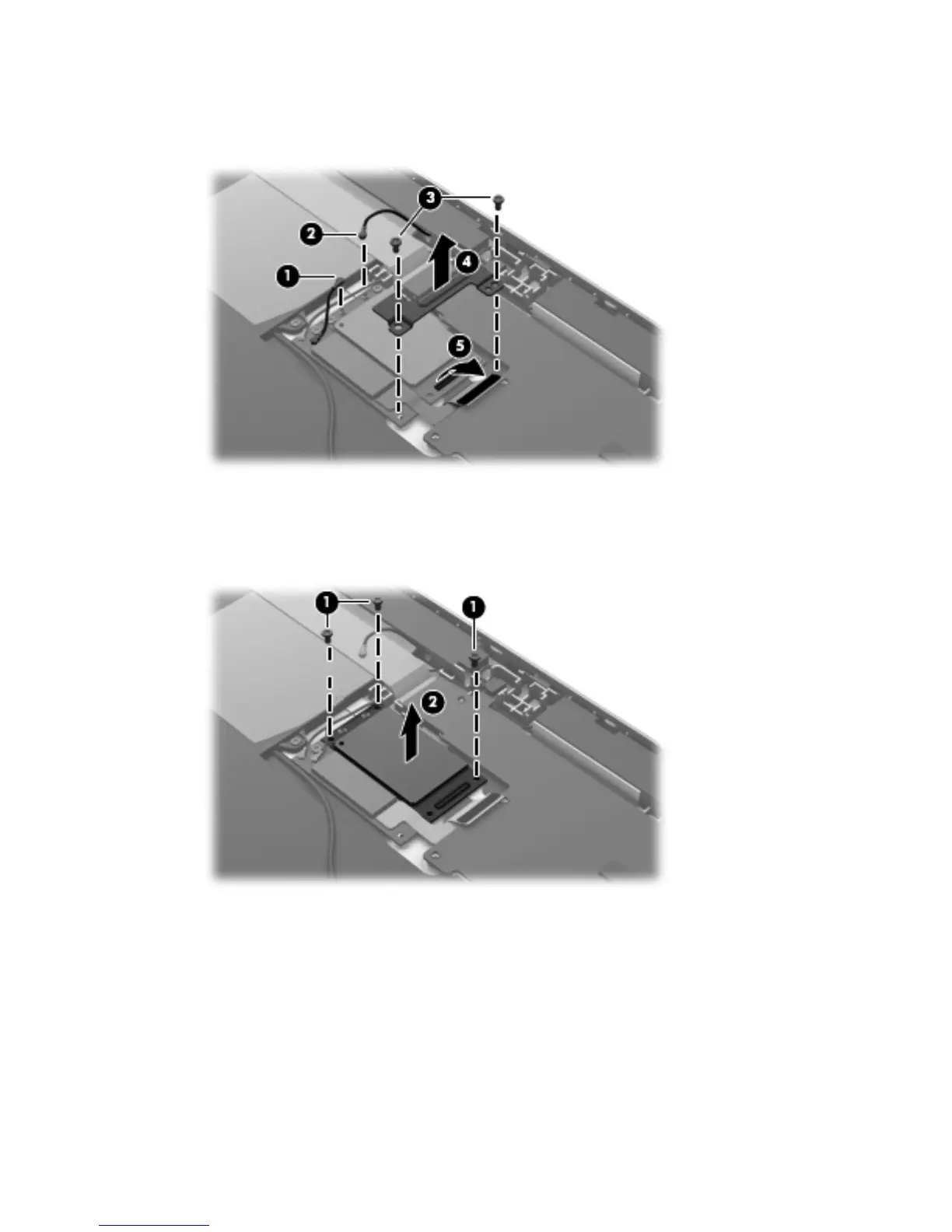

Remove the communications bracket (4).
6.
Disconnect the cable (5) that connects the WWAN module to the system board.
7. Remove the three Phillips PM1.4×2.0 screws (1) that secure the WWAN module to the
bottom case.
8. Remove the WWAN module (2).
Reverse this procedure to install the WWAN module.
Component replacement procedures
35
