3.

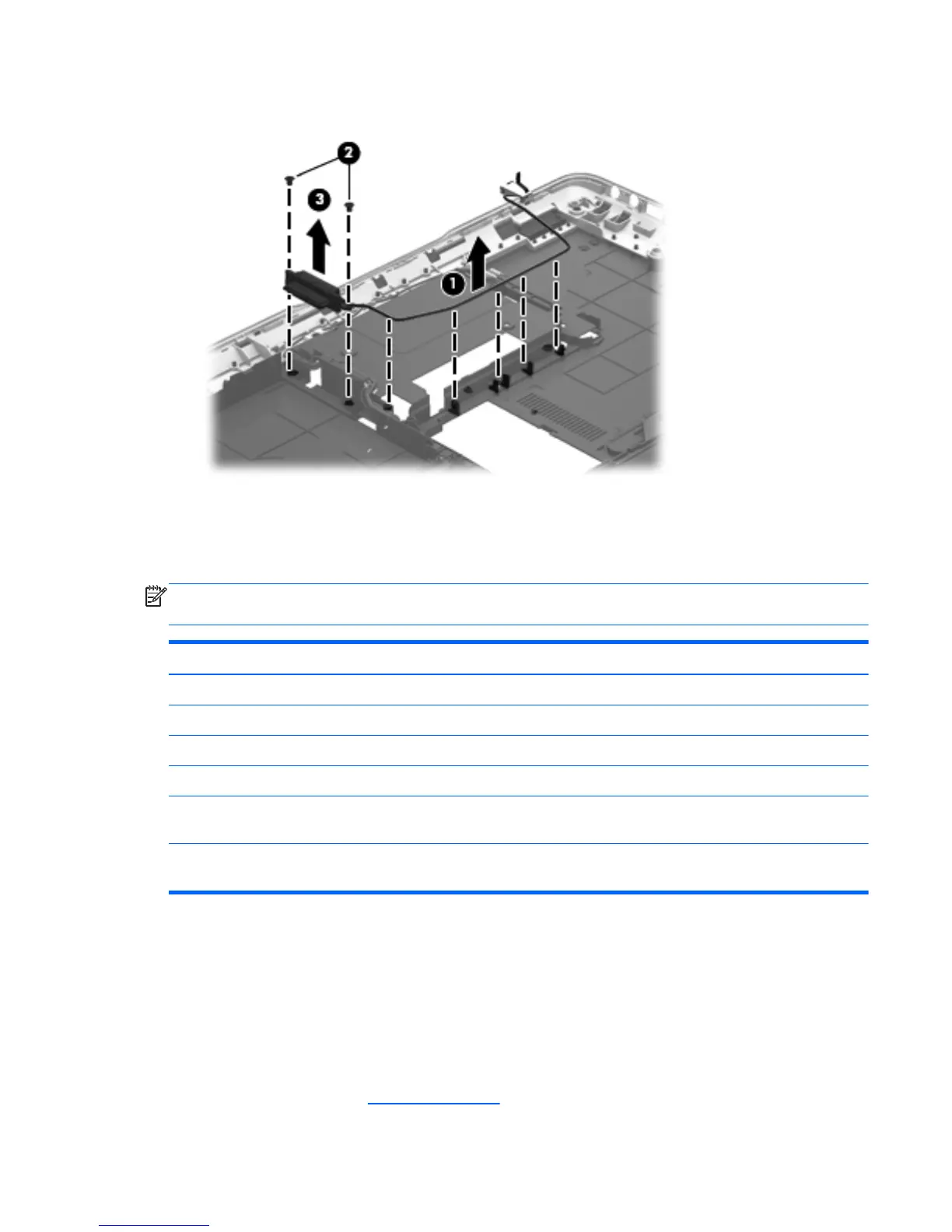

Remove the optical drive connector (3).
Reverse this procedure to install the optical drive connector cable.
Display assembly
NOTE: The display assembly spare part kit includes the display panel cable, 2 WLAN antenna
transceivers and cables, and the webcamera/microphone module and cable.
Description Spare part number
For use on all computer models:
15.6-in, AntiGlare, FHD display assembly in aluminum finish 698958-001
15.6-in, BrightView, HD display assembly in aluminum finish 698957-001
For use only with computer models equipped with an Intel processor:
15.6-in, AntiGlare, FHD display assembly in aluminum finish (for use only on computer models
equipped with a graphics subsystem with discrete memory)
698960-001
15.6-in, BrightView, HD display assembly in aluminum finish (for use only on computer models
equipped with a graphics subsystem with discrete memory)
698959-001
Before removing the display assembly, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see
Battery on page 51).
