EL-MF877-00 Page 3
Template Revision B
PSG instructions for this template are available at EL-MF877-01
34. Remove LCD bezel
35. Dis-fasten Hinge BKT screw*6
36. Pull out LCD cable & camera cable
37. Dis-fasten LCD BKT -L & -R screws*4
38. Remove LCD module
39. Remove Camera module
40. Remove antenna cables -L & -R
3.2 Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items
contained in the product that require selective treatment (with descriptions and arrows identifying locations).

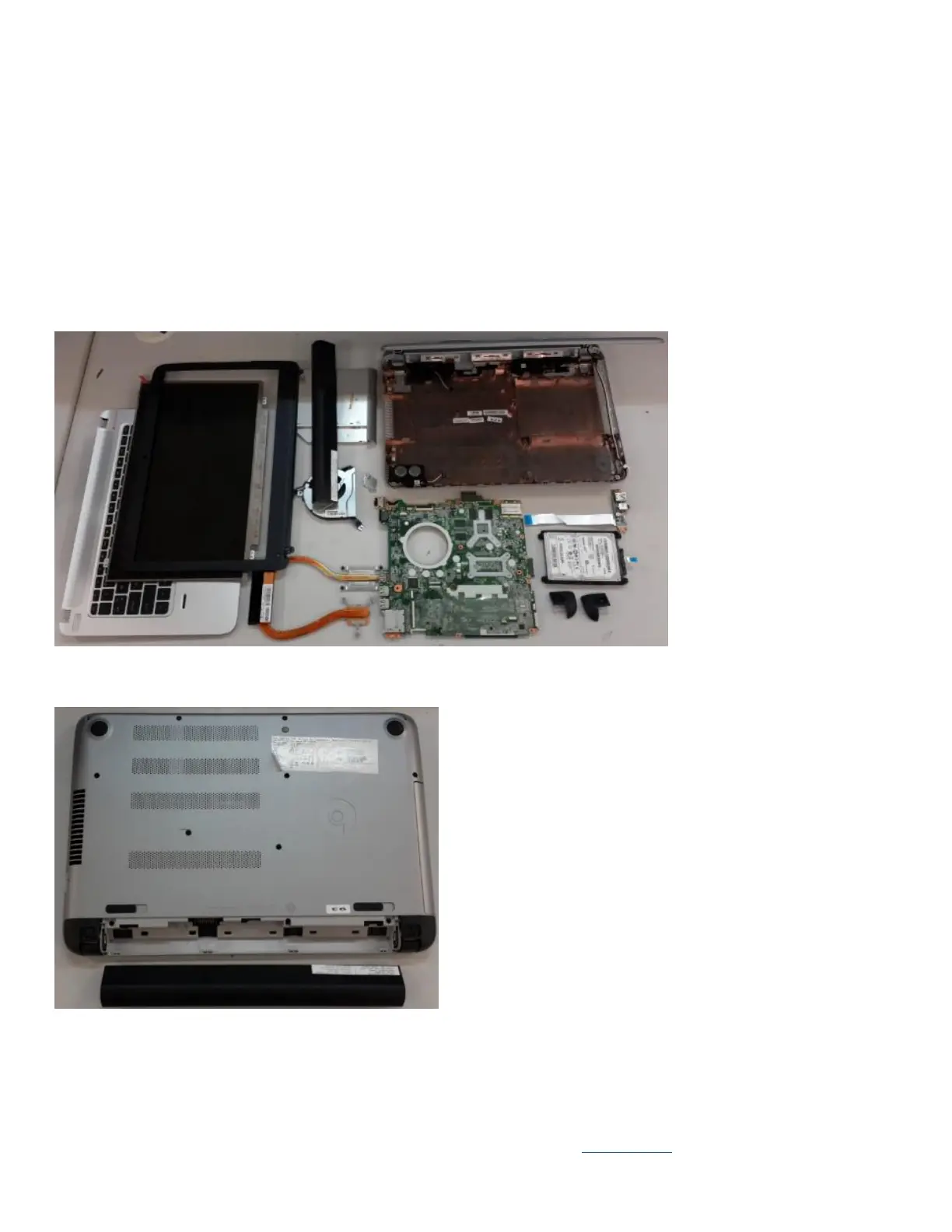

3.21 Total part disassembly
3.22 Remove battery module
3.23 LCD module set disassembly
