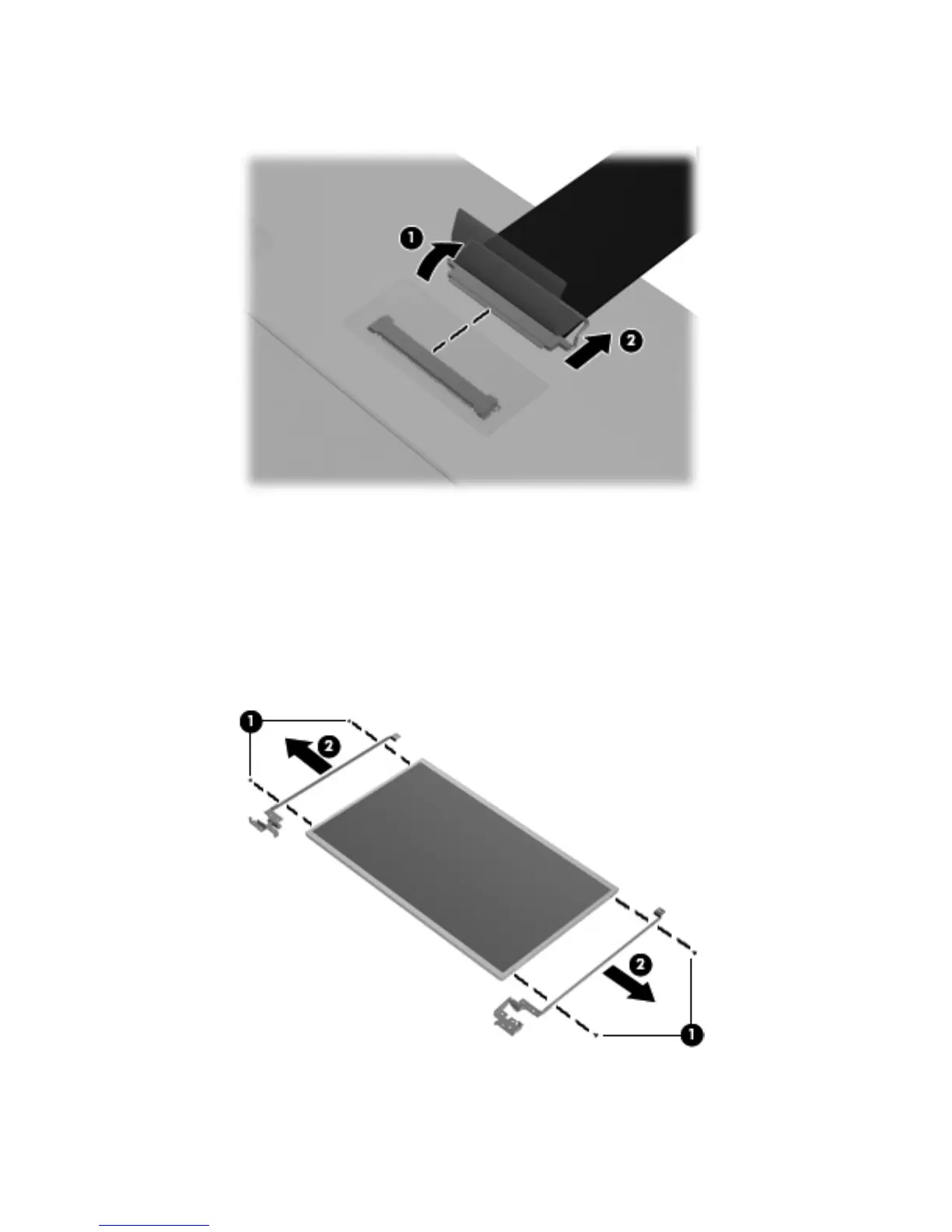

c. Release the adhesive strip (1) that secures the display panel cable to the display panel,
and then disconnect the display panel cable (2) from the display panel.
d. Remove the display panel. The display panel cable is available using spare part number
639454-001.
9. If it is necessary to replace the display hinges:
a. Remove the four Phillips PM2.0×3.0 screws (1) that secure the display hinges to
the display panel.
b. Remove the display hinges (2). The display hinges include the display hinges and brackets
and are available using spare part number 639445-001.
Component replacement procedures 93
