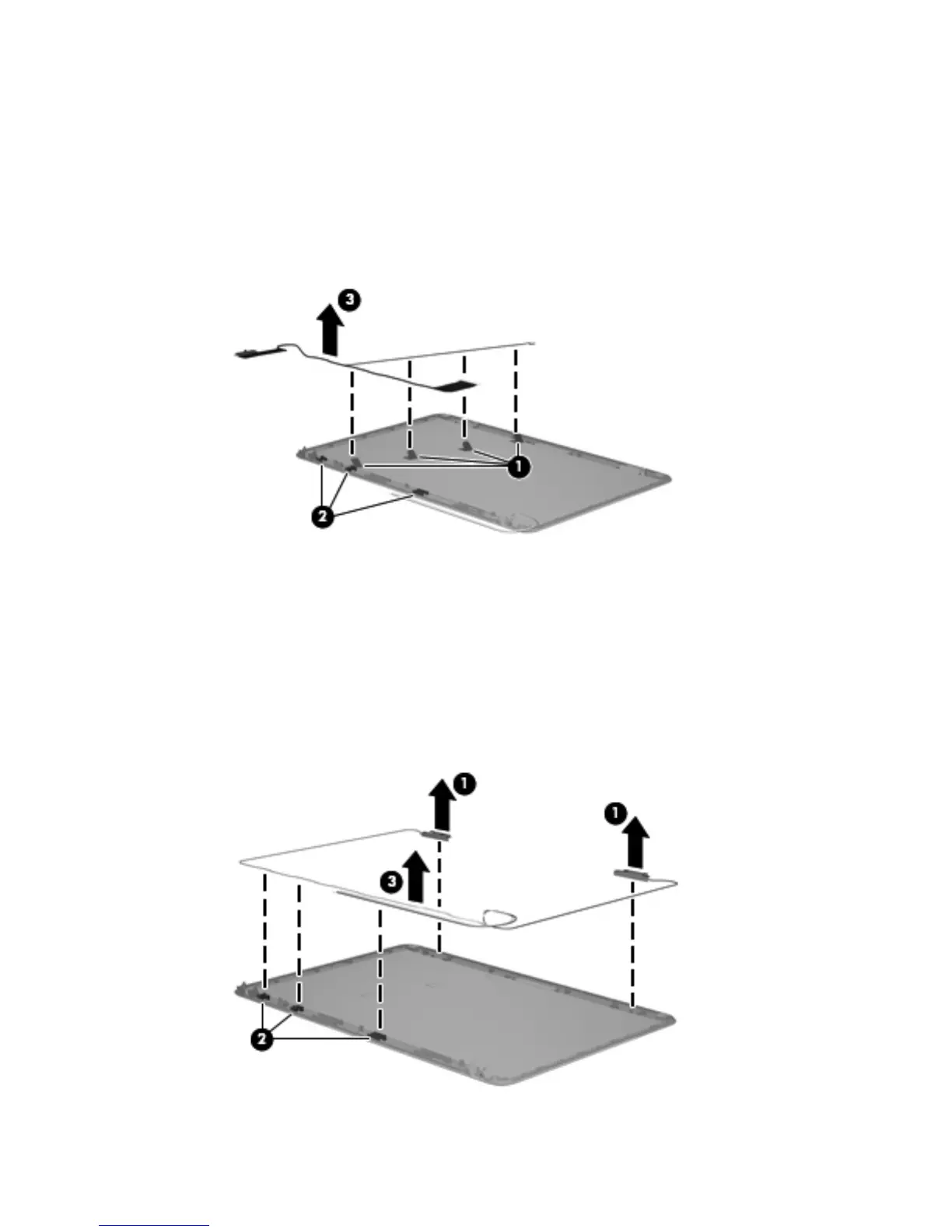

10. If it is necessary to replace the display panel cable:
a. Release the tabs (1) built into the display enclosure shielding that secure the display panel
cable to the display enclosure.
b. Release the display panel cable from the clips (2) built into the display enclosure.
c. Remove the display panel cable (3). The display panel cable includes the webcam/
microphone module cable and is available in the Display Cable Kit, spare part number
639441-001.
11. If it is necessary to replace the wireless antenna cables and transceivers:
a. Release the wireless antenna transceivers (1) from the display enclosure. (The wireless
antenna transceivers are attached to the display enclosure with double-sided tape.)
b. Release the wireless antenna cables from the clips (2) built into the display enclosure.
c. Remove the wireless antenna cables and transceivers (3). The wireless antenna cables
and transceivers are available in the Antenna Kit, spare part number 640294-001.
94 Chapter 4 Removal and replacement procedures
