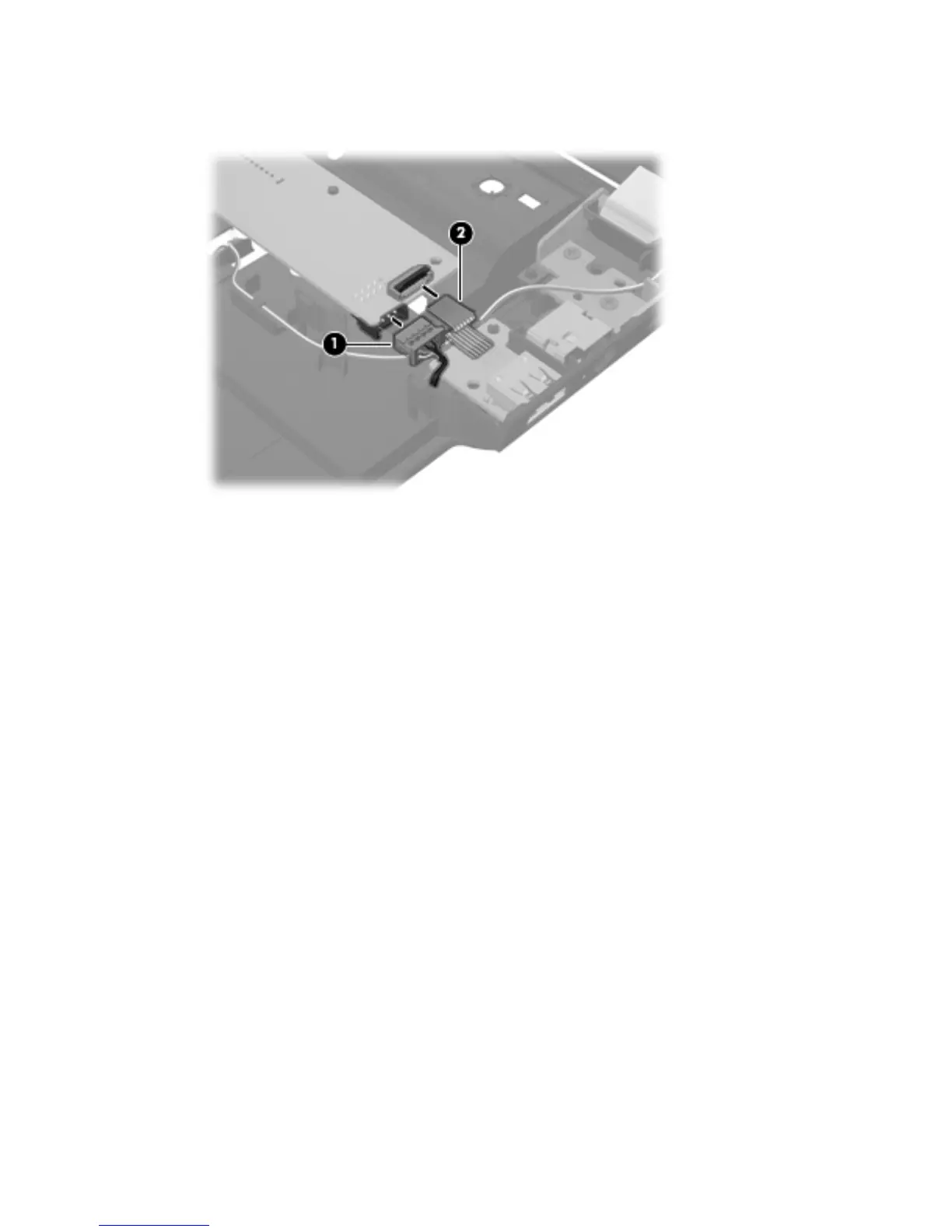

3. Release the ZIF connector to which the USB board cable is attached, and then disconnect
the USB cable (2) from the system board.
4. Remove the Phillips PM2.5×6.0 screw (1) that secures the system board to the base enclosure.
5. Lift the right side of the system board (2) until it rests at an angle.
Component replacement procedures 75
