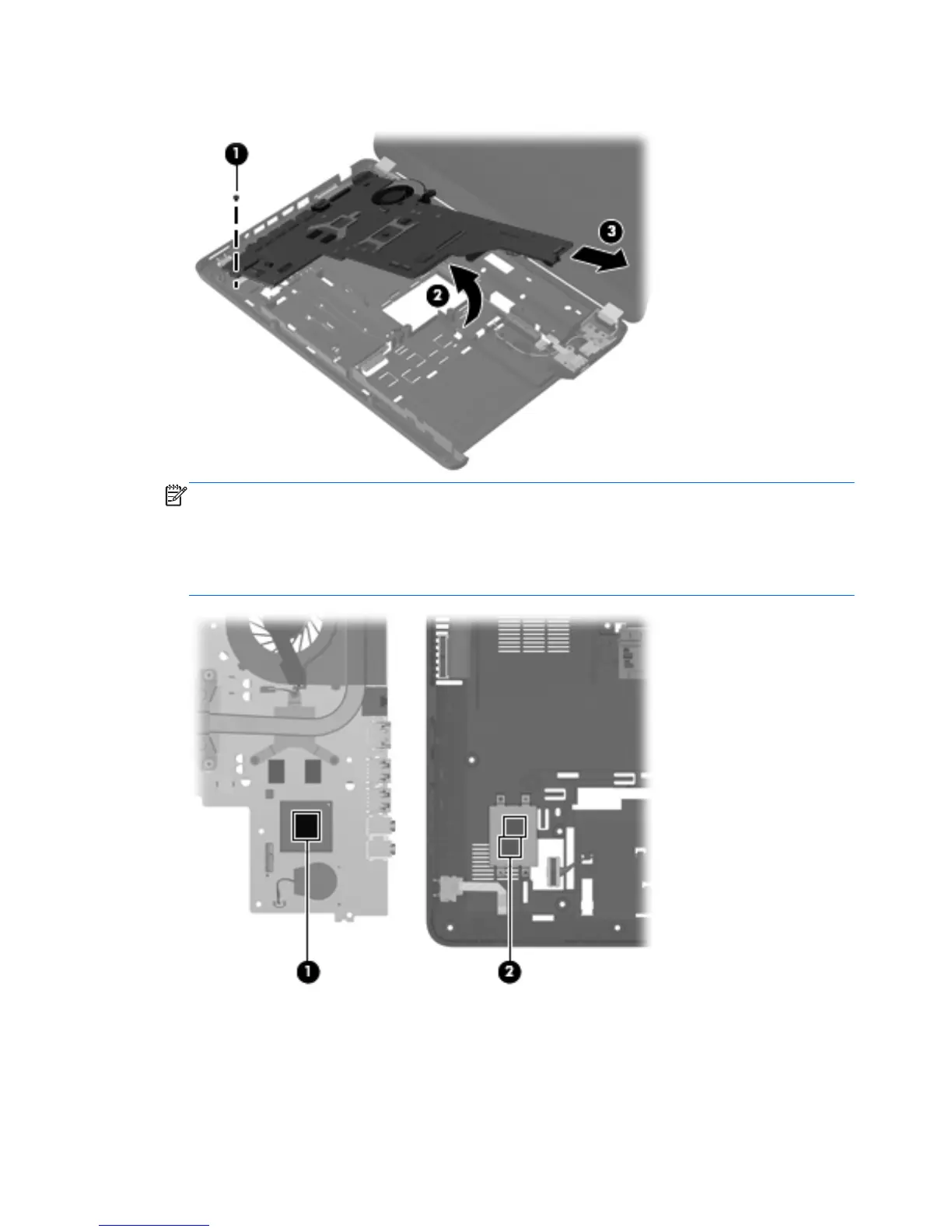

6. Remove the system board (3) by sliding it up and to the right at an angle.

NOTE: System boards for use with computer models equipped with an AMD processor have

the Southbridge chip located on the bottom of the board. A thermal pad is used on

the Southbridge chip (1) and the base enclosure heat sink (2) that services it. The

thermal material must be thoroughly cleaned from the surfaces of the system board and the heat

sink attached to the base enclosure each time the system board is removed. Replacement

thermal material is included with all base enclosure and system board spare part kits.

Reverse this procedure to install the system board.

76 Chapter 4 Removal and replacement procedures
