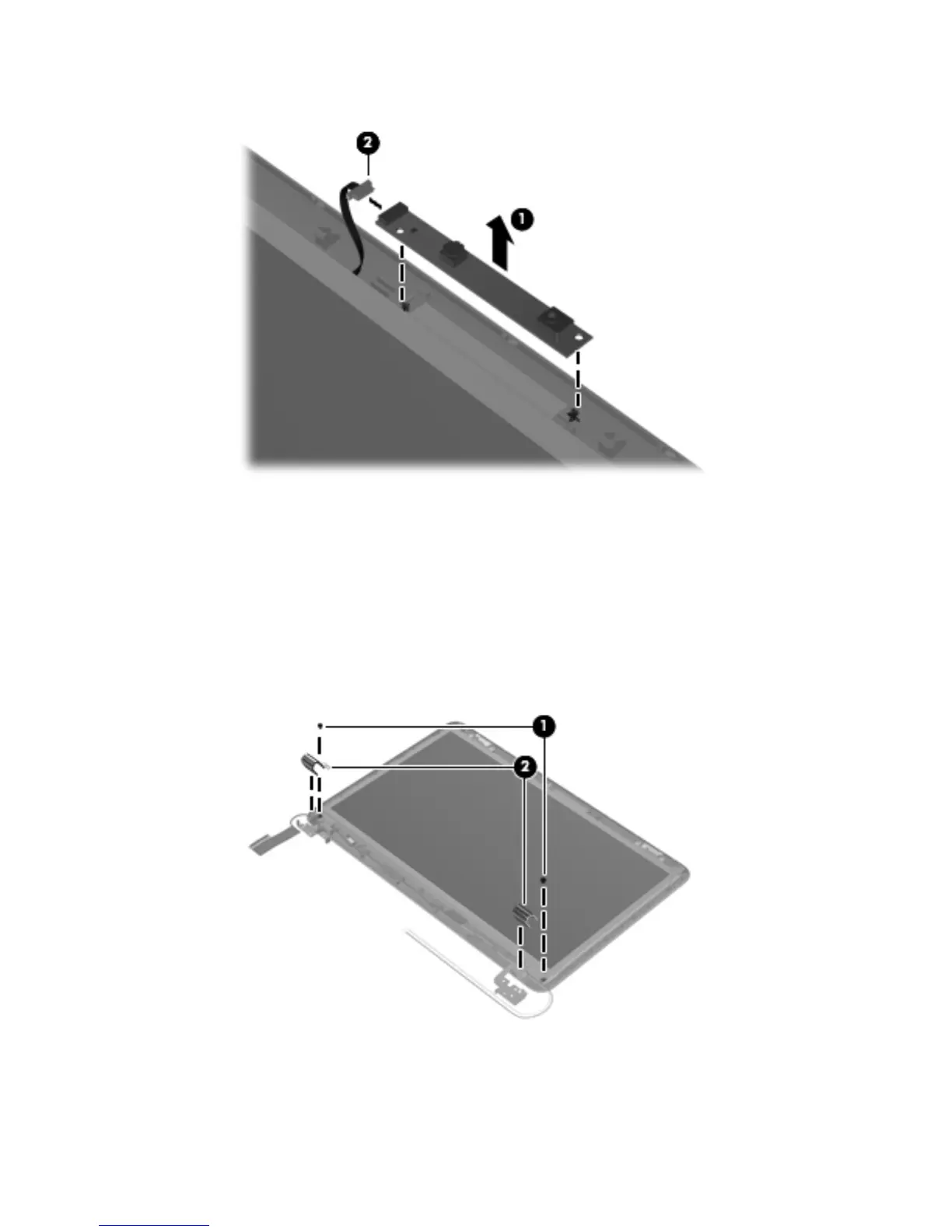

b. Disconnect the webcam/microphone module (2) from the webcam/microphone module.
c. Remove the webcam/microphone module. The webcam/microphone module is available
using spare part number 637197-001.
7. If it is necessary to replace the hinge covers:
a. Remove the Phillips PM2.5×6.0 (1) screws that secure the hinge covers to
the display enclosure.
b. Remove the hinge covers (2). The hinge covers are available using spare part number
639446-001.
Component replacement procedures 91
