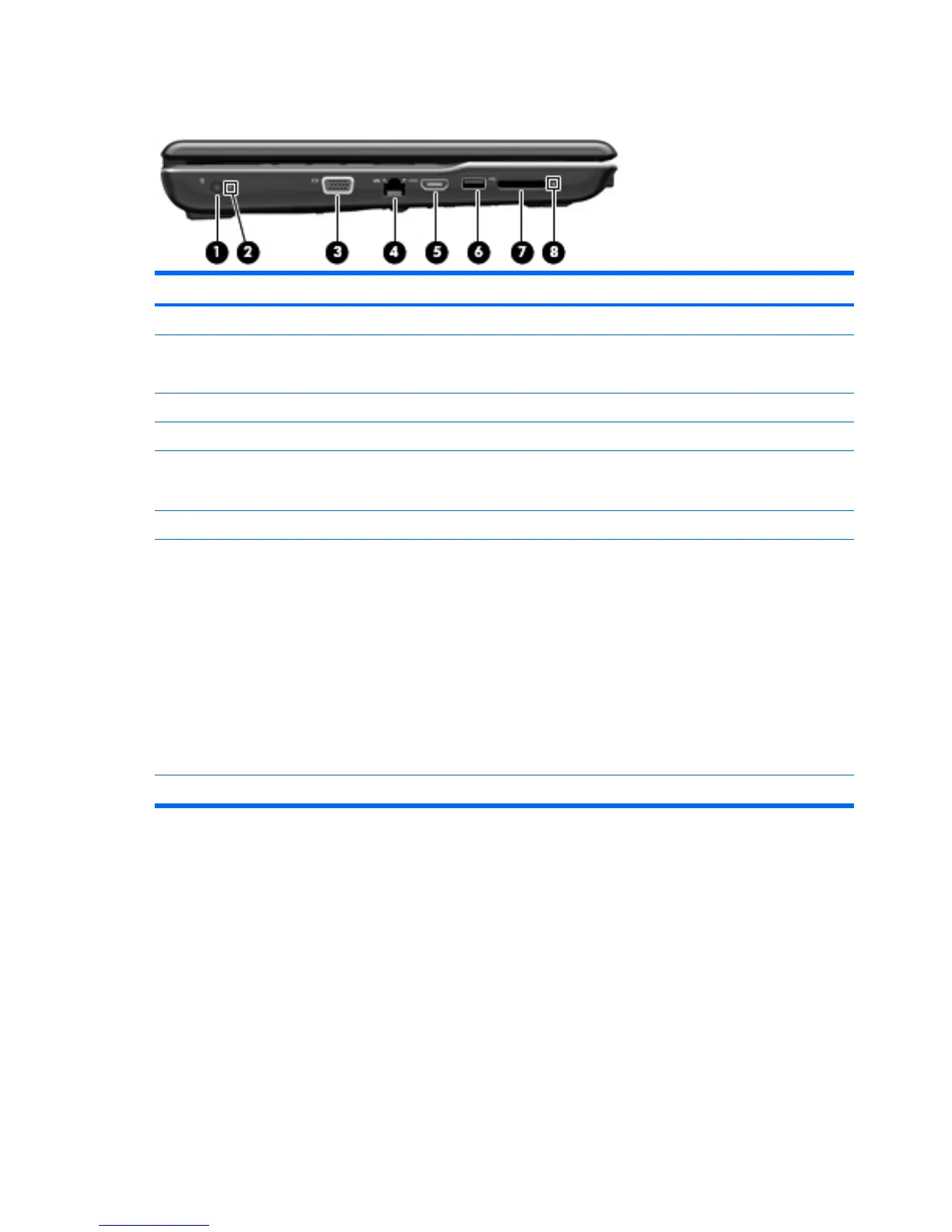

Left-side components
Item Component Function
(1) Power connector Connects an AC adapter.
(2) AC adapter light
●
On: The computer is connected to external power.
●
Off: The computer is not connected to external power.
(3) External monitor port Connects an external VGA monitor or projector.
(4) RJ-45 (network) jack Connects a network cable.
(5) HDMI port Connects an optional video or audio device, such as a high-
definition television, or any compatible digital or audio
component.
(6) USB port Connects an optional USB device.
(7) Digital Media Slot Supports the following optional digital card formats:
●
Memory Stick (MS)
●
Memory Stick Pro (MSP)
●
MultiMediaCard (MMC)
●
Secure Digital (SD) Memory Card
●
xD-Picture Card (XD)
●
xD-Picture Card (XD) Type H
●
xD-Picture Card (XD) Type M
(8) Digital Media Slot light On: A digital card is being accessed.
12 Chapter 2 External component identification
