e. Display assembly (see Display assembly on page 57)
f. Top cover (see
Top cover on page 64)
g. Speakers (see
Speakers on page 72)
h. System board (see
System board on page 74)
i. Fan/heat sink assembly (see
Fan/heat sink assembly on page 79)
Remove the processor:

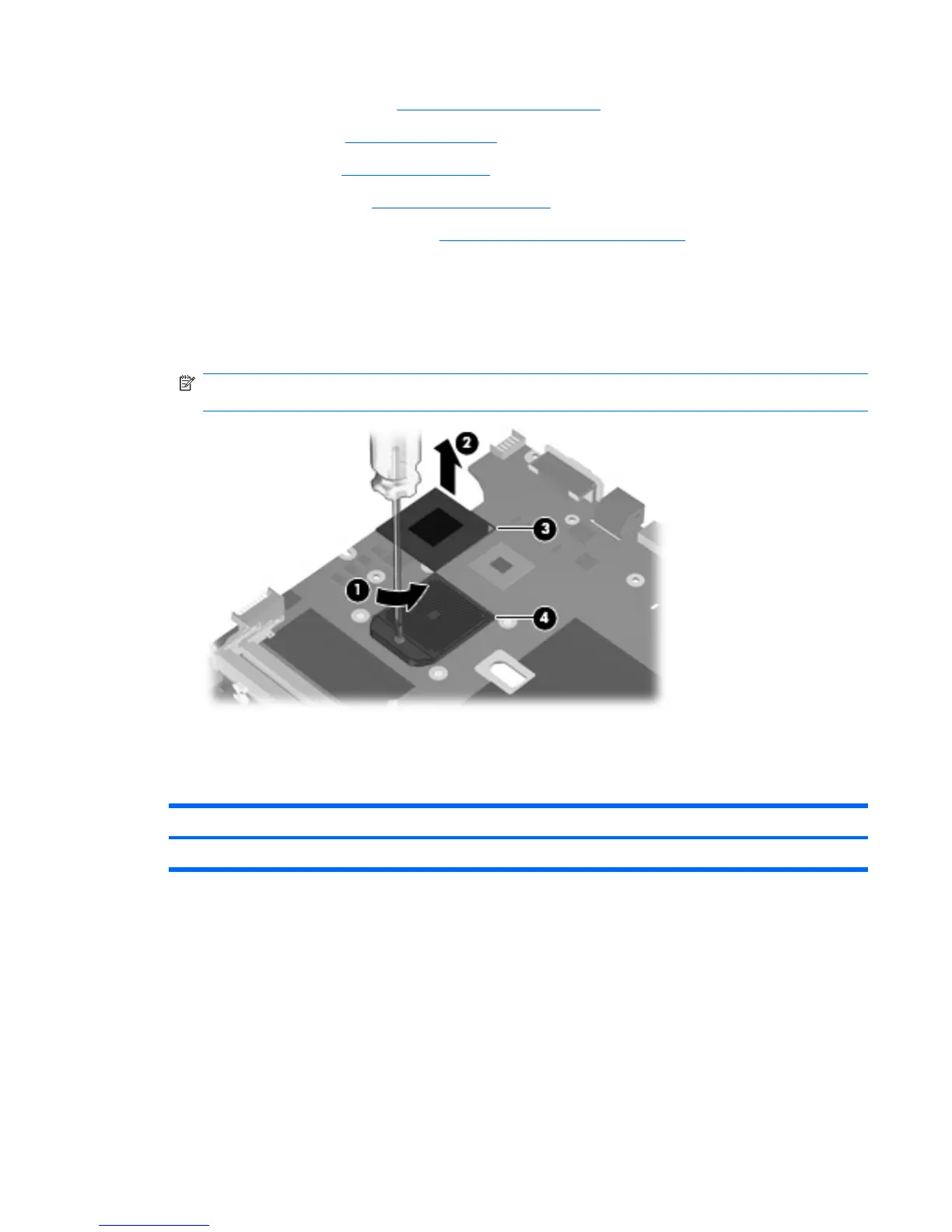

1. Use a flat-bladed screwdriver to turn the processor locking screw (1) one-half turn counterclockwise
until you hear a click.
2. Lift the processor (2) straight up and remove it.
NOTE: When you install the processor, the gold triangle (3) on the processor must be aligned
with the triangle (4) embossed on the processor socket.
Reverse this procedure to install the processor.
Power connector cable
Description Spare part number
Power connector cable 486637-001
Before removing the power connector cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
Component replacement procedures 83
