4. Remove the battery (see Battery on page 40).
5. Remove the following components:
a. Optical drive (see
Optical drive on page 41)
b. Hard drive (see
Hard drive on page 43)
c. Keyboard (see
Keyboard on page 52)
d. Keyboard cover (see
Keyboard cover on page 54)
e. Display assembly (see
Display assembly on page 57)
f. Top cover (see
Top cover on page 64)
g. System board (see
System board on page 74)

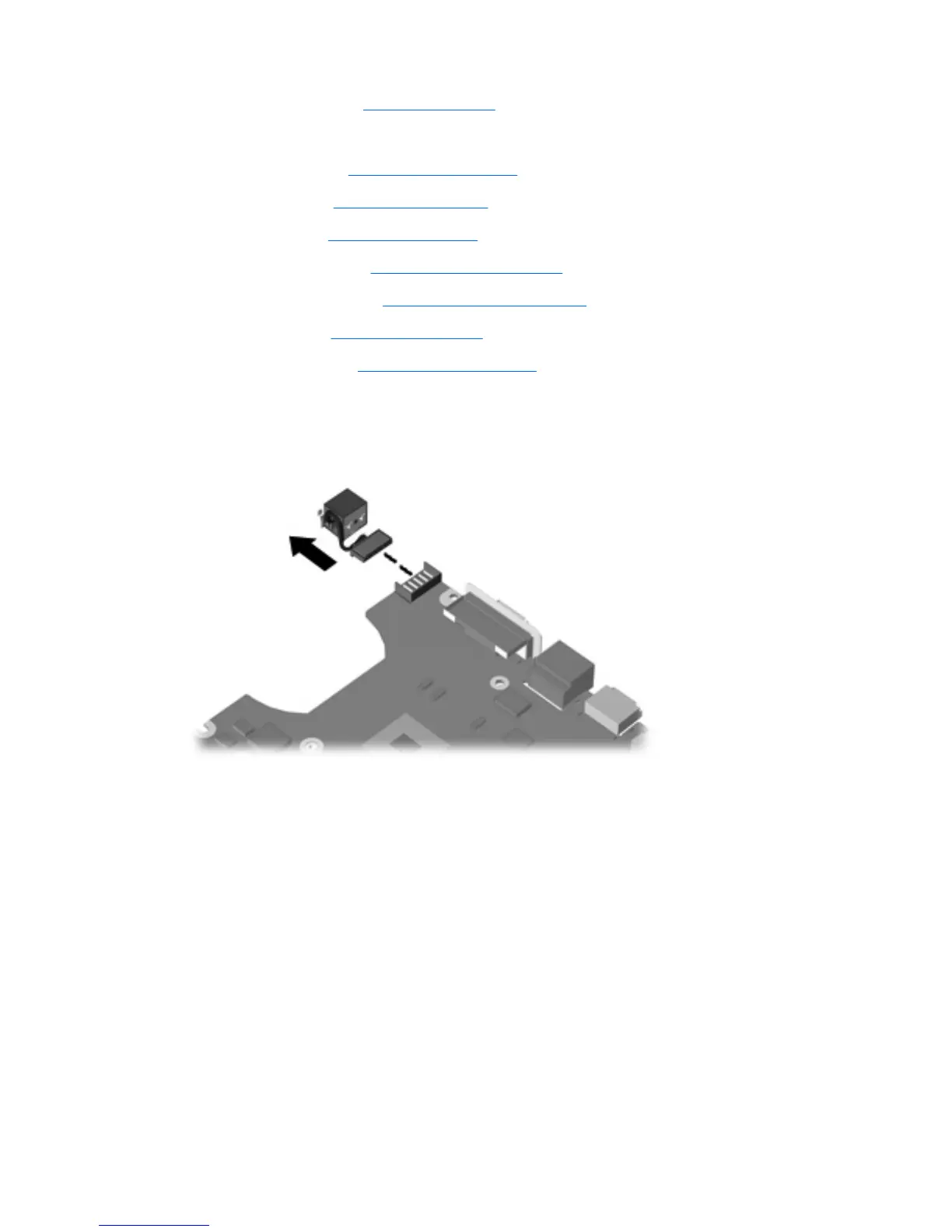

Remove the power connector cable:
1. Position the system board with the front toward you.
2. Disconnect the power connector cable from the system board.
Reverse this procedure to install the power connector cable.
84 Chapter 4 Removal and replacement procedures
