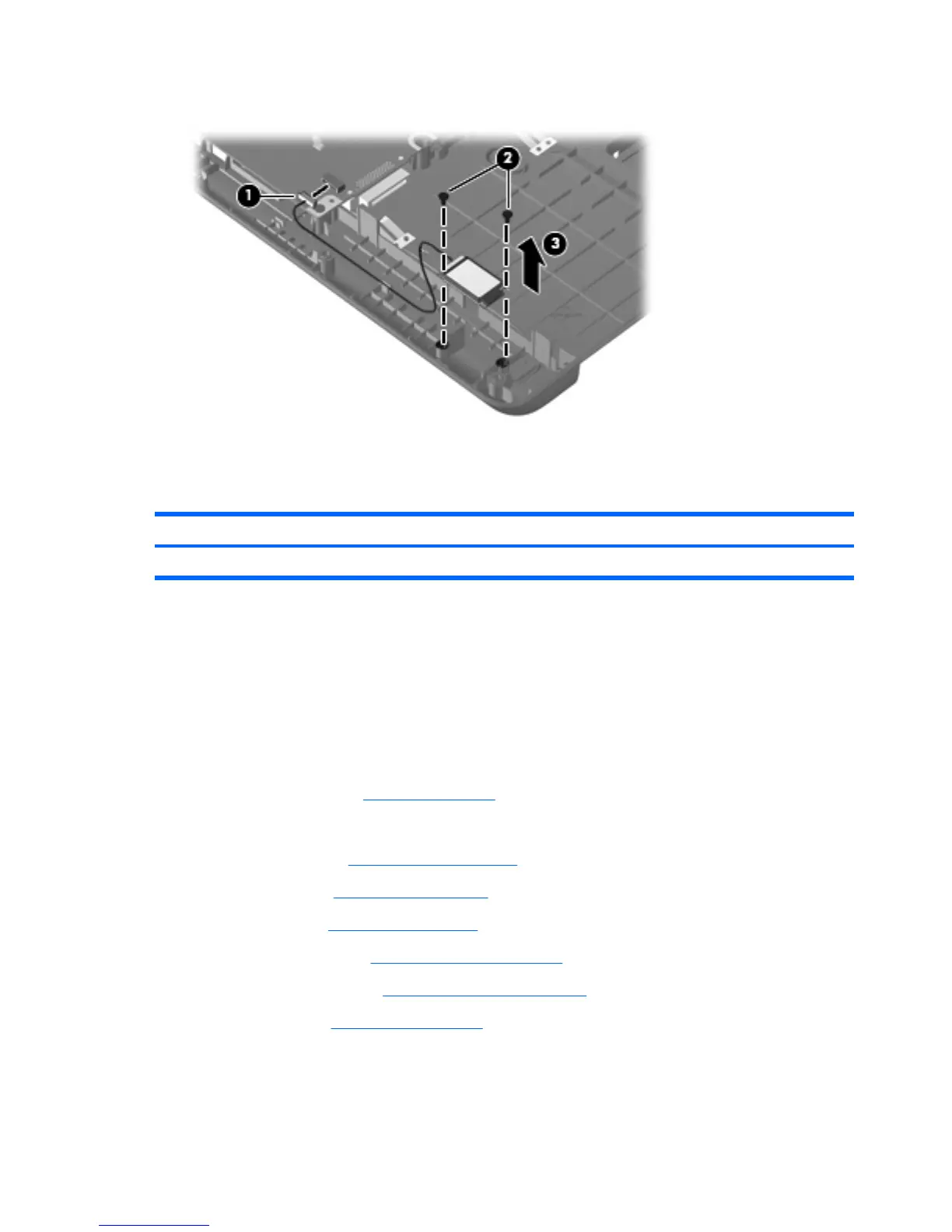

3. Remove the Bluetooth module (3).
Reverse this procedure to install the Bluetooth module.
Speakers
Description Spare part number
Speakers 486632-001
Before removing the speakers, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 40).
5. Remove the following components:
a. Optical drive (see
Optical drive on page 41)
b. Hard drive (see
Hard drive on page 43)
c. Keyboard (see
Keyboard on page 52)
d. Keyboard cover (see
Keyboard cover on page 54)
e. Display assembly (see
Display assembly on page 57)
f. Top cover (see
Top cover on page 64)
Remove the speakers:
1. Detach the USB board cable (1) from the right speaker. The USB board cable is attached to the
speaker with double-sided tape.
72 Chapter 4 Removal and replacement procedures
