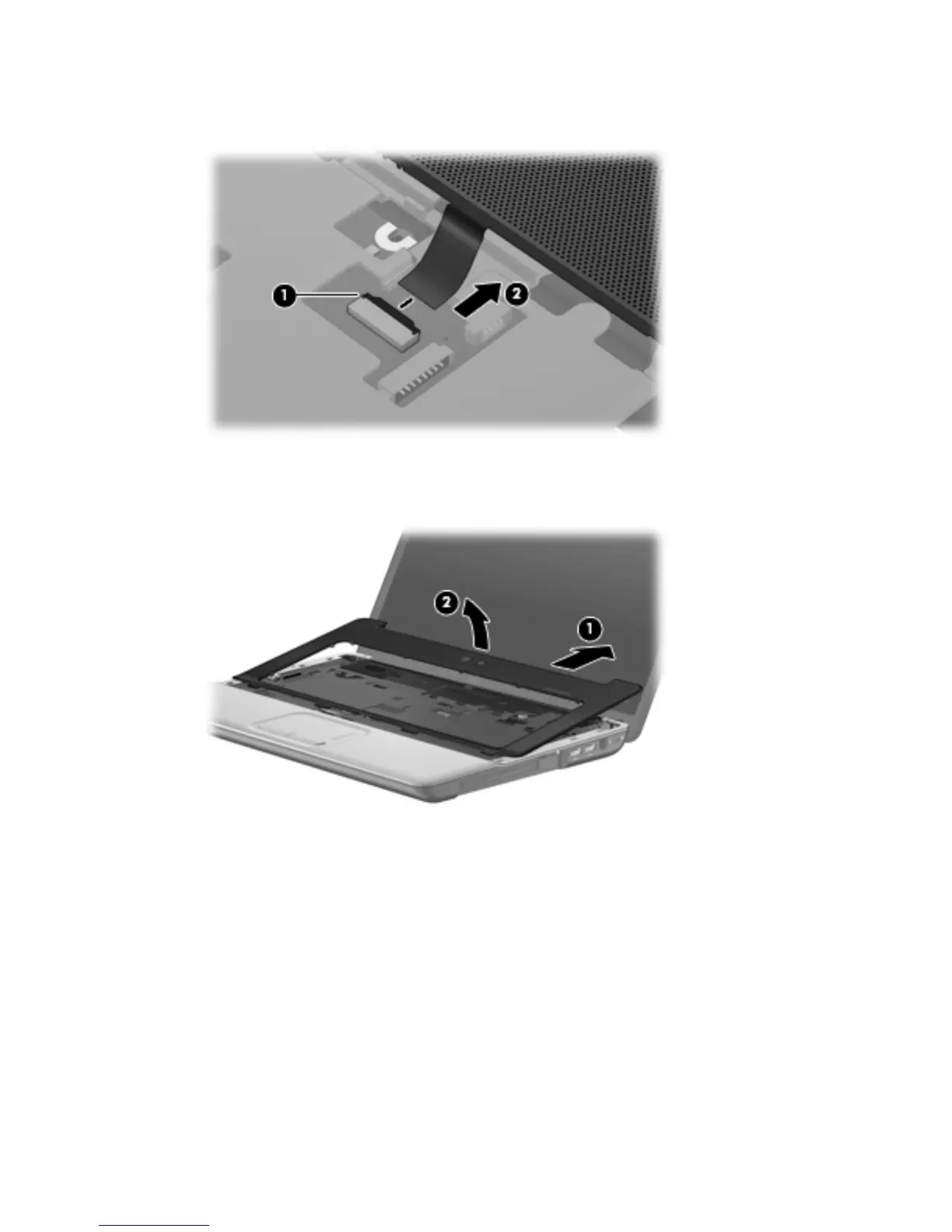

5. Release the ZIF connector (1) to which the power button board cable is attached, and disconnect
the power button board cable (2) from the system board.
6. Slide the keyboard cover (1) toward the display assembly until it disengages from the top cover.
7. Remove the keyboard cover (2).
Reverse this procedure to install the keyboard cover.
Component replacement procedures 55
