4–18 Maintenance and Service Guide
Removal and replacement procedures

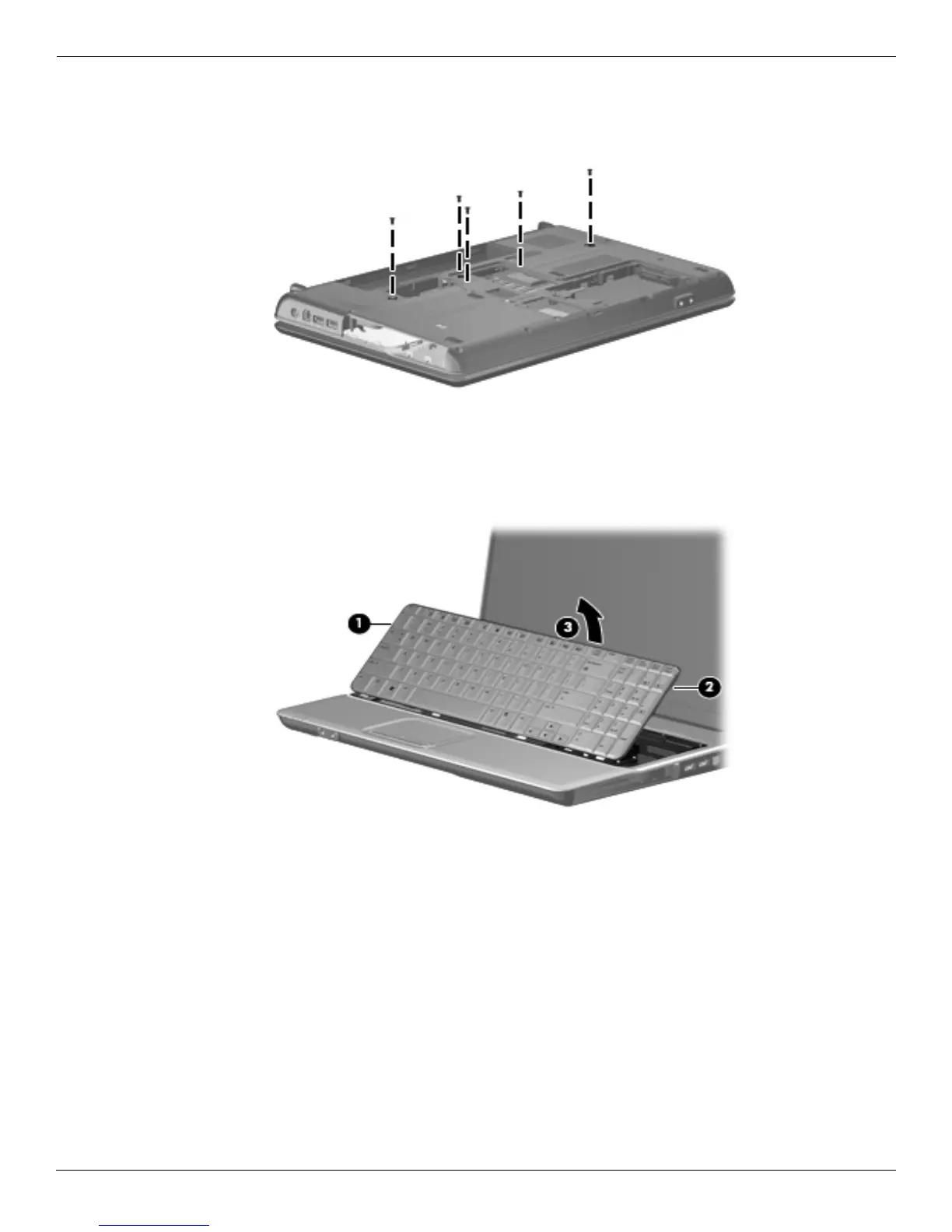

Remove the keyboard:
1. Turn the computer upside down, with the front toward you.
2. Remove the 5 Phillips PM2.5×7.0 screws that secure the keyboard to the computer.
3. Turn the computer right-side up, with the front toward you.
4. Open the computer as far as possible.
5. Release the tabs along the left 1 and right 2 edges of the keyboard using a thin flat-bladed screwdriver.
6. Lift the rear edge of the keyboard 3, and rotate it forward until it rests upside down on the TouchPad.
