4–24 Maintenance and Service Guide
Removal and replacement procedures

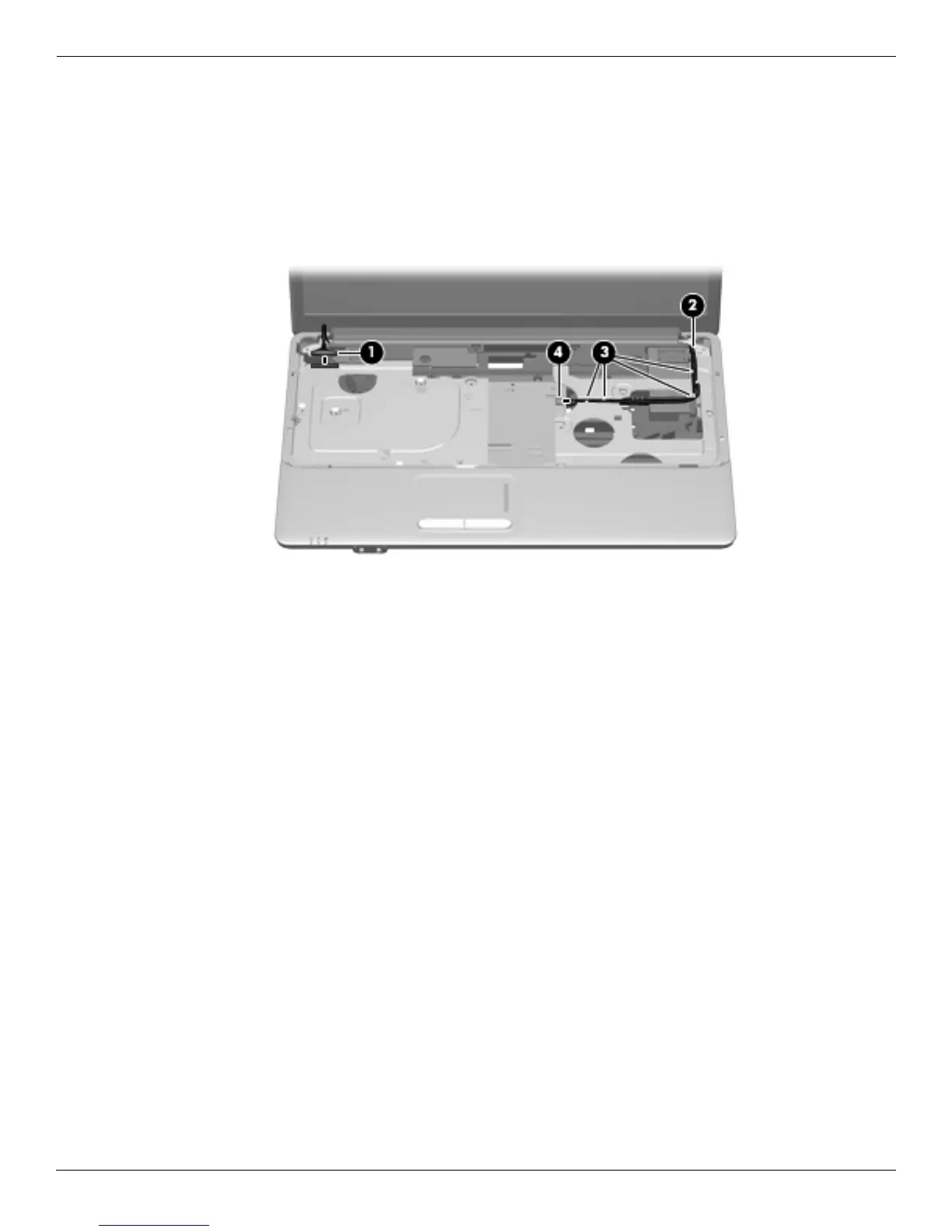

Remove the display assembly:
1. Pull the antenna cables through the opening in the top cover 1 and disengage the cables from the clip in the
routing channel leading to the display hinge.
2. Disconnect the display panel cable 2 from the system board and remove it from its routing channel.
3. Disconnect the microphone cable 3 from the system board and release it from the clips that attach it to the
top cover.
4. Remove the caps lock LED 4 from its mounting clips on the top cover.
