4–28 Maintenance and Service Guide
Removal and replacement procedures

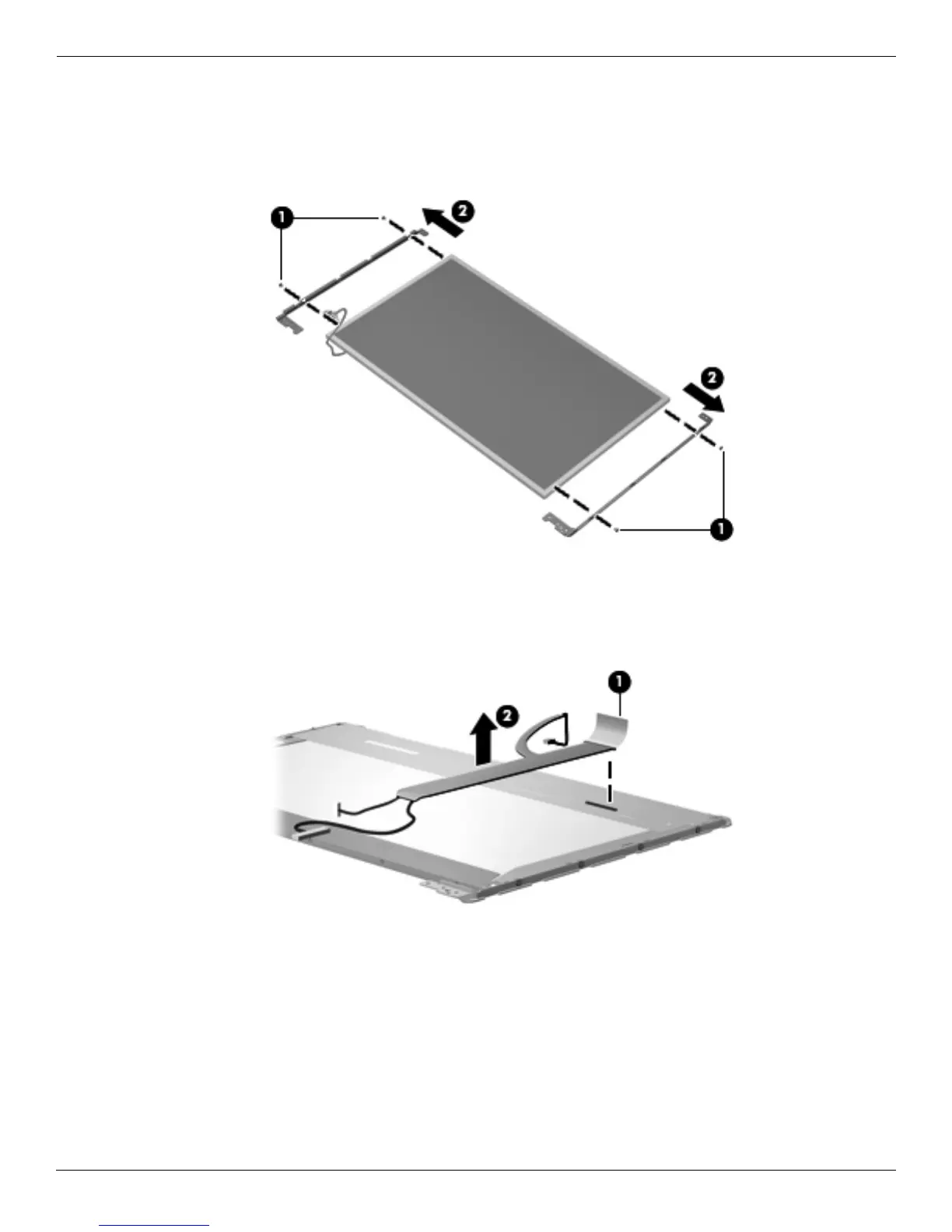

16. If it is necessary to replace the display panel brackets, remove the 2 Phillips PM2.0×3.0 screws 1 that secure
each bracket to the display panel.
17. Remove the display panel brackets 2 from the display panel. The display panel brackets for the 16-inch
display are available using spare part number 530996-001, and for the 15.6-inch display using spare part
number 530995-001.
18. If it is necessary to replace the display panel cable, which is attached to the back of the display panel with clear
adhesive tape, remove the tape 1 to release the cable from its connector. The display panel cable kit includes
the camera module cable and is available using spare part number 534077-001.
19. Remove display panel cable 2.
