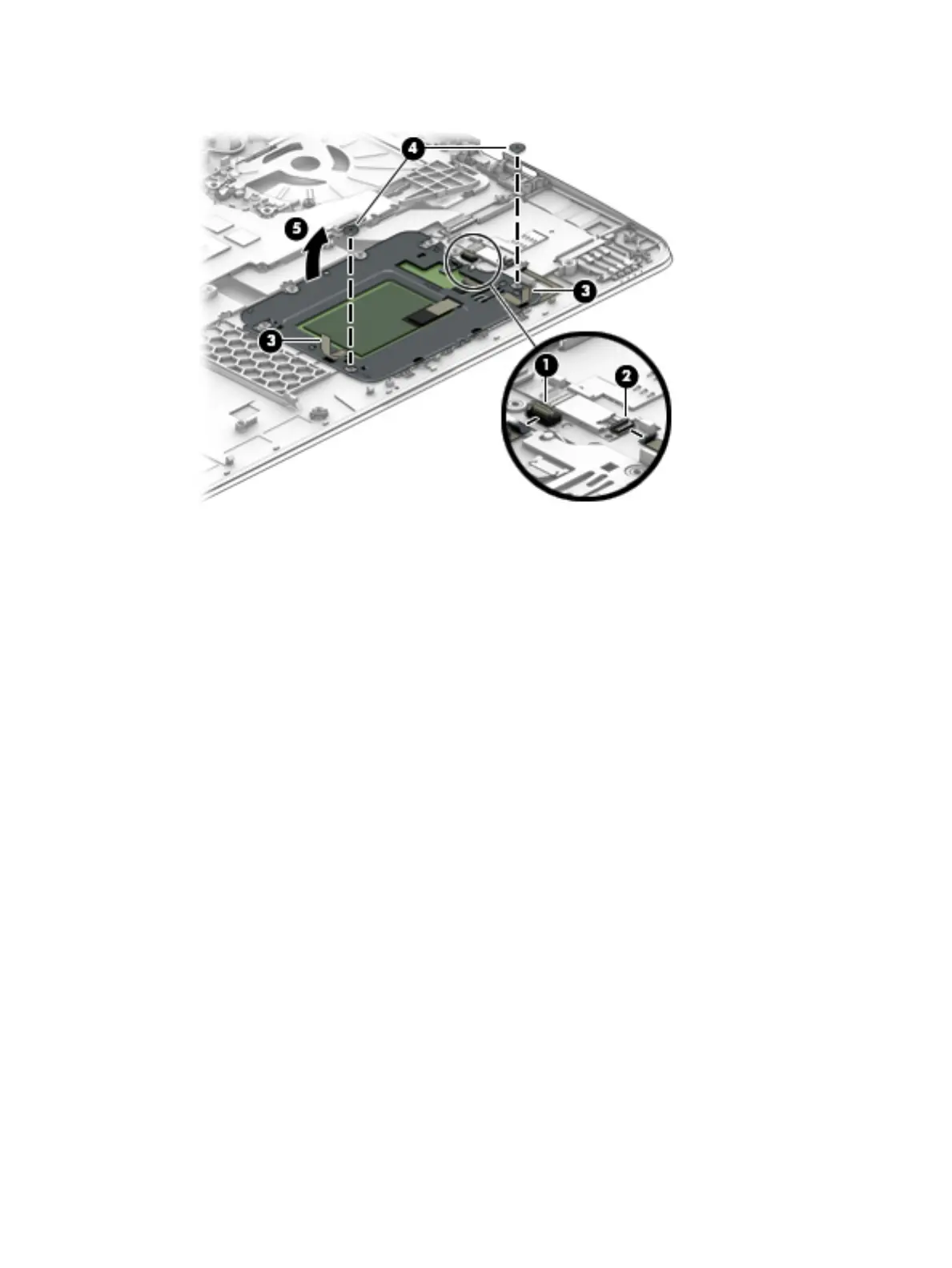

3. Lift the top of the touchpad button board up, and then pull it forward to remove it from the slot (5).

Reverse this procedure to install the touchpad board.

Component replacement procedures 67
