HP L3C64AV - Page 91

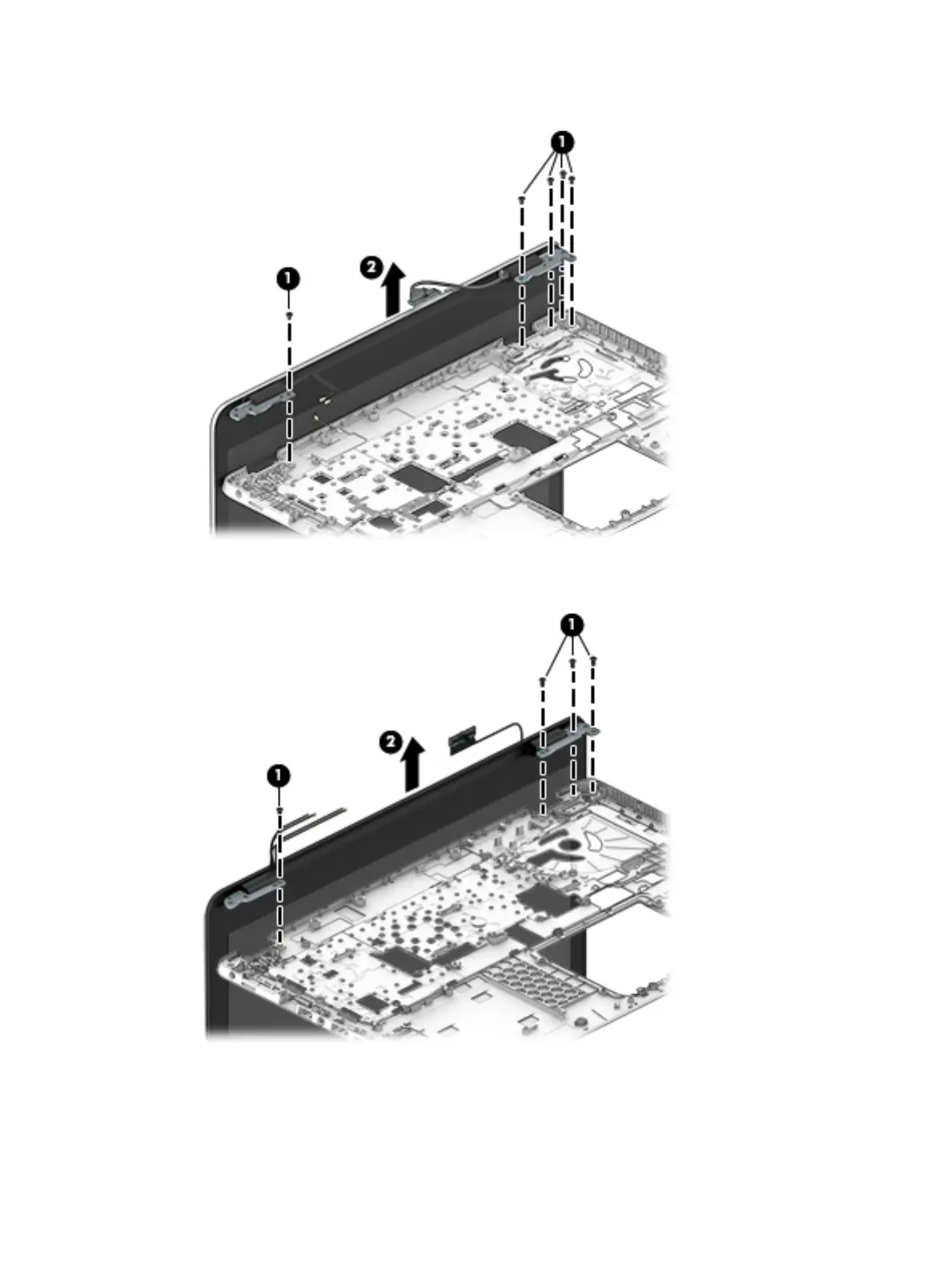

4. On a 14” computer, remove the 5 Phillips PM2.5×5.0 screws (1) from the display hinges.
– or –
On a 15” computer, remove the 4 Phillips PM2.5×5.0 screws (1) from the display hinges.
5. Lift the display assembly straight up and remove it (2).
Component replacement procedures 77
