HP L7010t - Illustrated Parts Catalog

7
3 Illustrated parts catalog

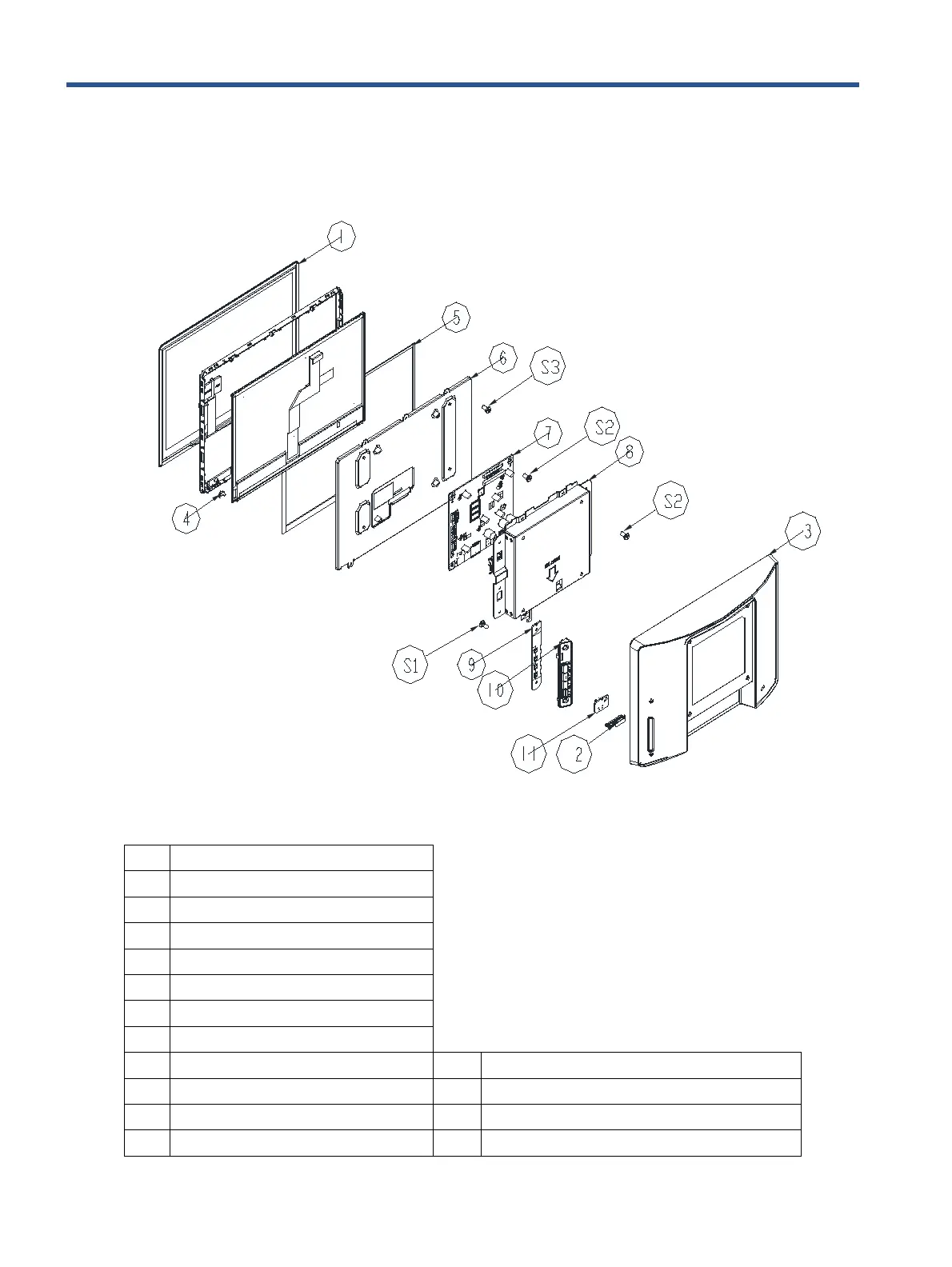

To identify the monitor major components, use this illustration and table.
Item
Part No.
1
PANEL
2
KEY_POWER
3
REAR_COVER L10WT-Yhp5-s5
4
LENS_POWER
5
SPONGE
6
MAINFRAME
7
MAIN BOARD-CBPCGDRHPQ1
8
SHIELD_MAINBOARD
No.
Description
9
KEY BOARD
S1
Screw(key board /rear cover)
10
KEY
S2
Screw(MAIN BOARD/SHIELD)
11
KEY BOARD
S3
0Q1G 930 5120(SHIELD/MAINFRAME)
