The main board
The main board
Remove the screws
to remove the key
boards
Remove the screws
to remove the key
boards
Connector repair
This procedure includes Micro USB, USB, DisplayPort and AC Socket.

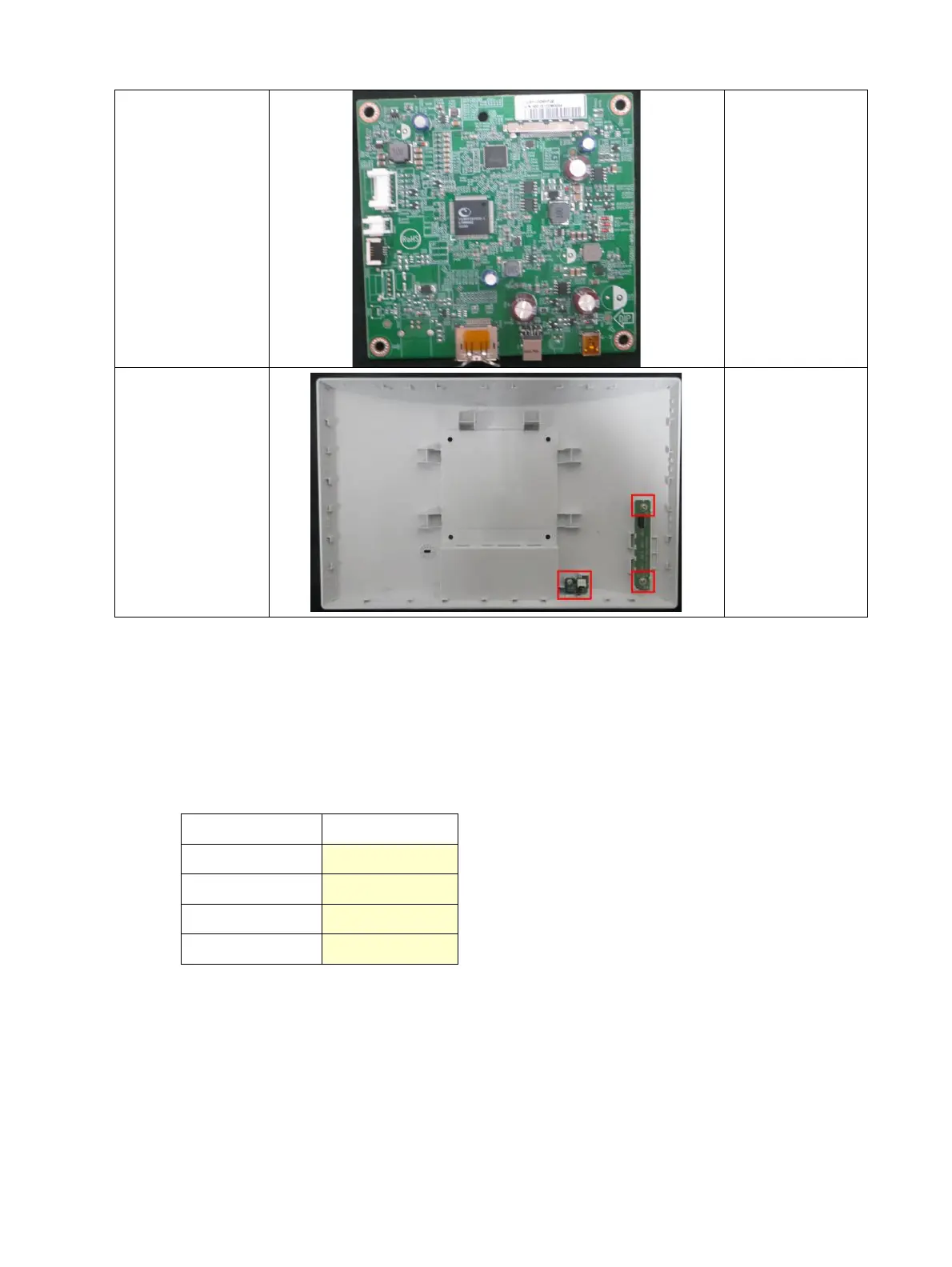

The connectors are on the main board (board part number CBPCGDRHPQ2).
The connectors identifiers are as follows:
Connector
Location
MICRO USB
CN102
DisplayPort
CN501
AC SOCKET
CN1
USB
CN701

HP L7010t Specifications

General

Pixel pitch	0.0565 x 0.1695 mm
Response time	30 ms
Display diagonal	10.1 \
Touch technology	Multi-touch
Display brightness	220 cd/m²
Display resolution	1280 x 800 pixels
Vertical scan range	50 - 76 Hz
Horizontal scan range	24 - 80 kHz
Touchscreen technology	Projected capacitive system
Contrast ratio (typical)	800:1
Viewing angle, horizontal	160 °
Product color	Black
Tilt angle range	-5 - 135 °
Country of origin	China
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	8.5 W
Power consumption (standby)	0.5 W
Power consumption (typical)	5.8 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Display viewable area (HxV)	216.96 x 135.6 mm
Panel mounting interface	100 x 100 mm
OmniTapps Multitouch compatibility	No
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	41.5 mm
Width	245.9 mm
Height	172.2 mm
Weight	1150 g
