HP L7010t User Manual

11

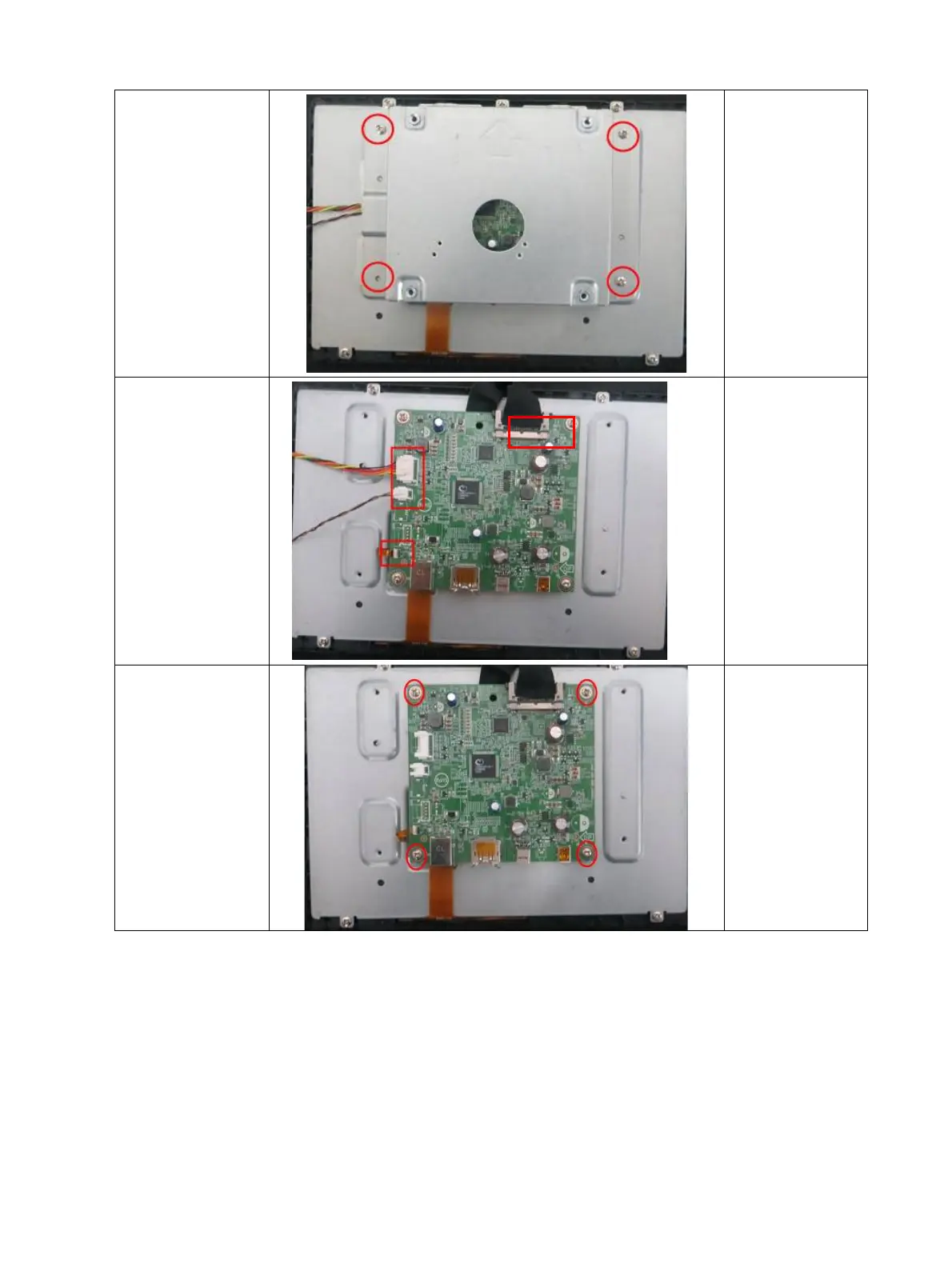

Remove the screws
to remove the
shield_mainboard
Remove the screws
to remove the
shield_mainboard
Remove the pins Remove the pins
Remove the screws Remove the screws

HP L7010t Specifications

General

Pixel pitch	0.0565 x 0.1695 mm
Response time	30 ms
Display diagonal	10.1 \
Touch technology	Multi-touch
Display brightness	220 cd/m²
Display resolution	1280 x 800 pixels
Vertical scan range	50 - 76 Hz
Horizontal scan range	24 - 80 kHz
Touchscreen technology	Projected capacitive system
Contrast ratio (typical)	800:1
Viewing angle, horizontal	160 °
Product color	Black
Tilt angle range	-5 - 135 °
Country of origin	China
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	8.5 W
Power consumption (standby)	0.5 W
Power consumption (typical)	5.8 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Display viewable area (HxV)	216.96 x 135.6 mm
Panel mounting interface	100 x 100 mm
OmniTapps Multitouch compatibility	No
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	41.5 mm
Width	245.9 mm
Height	172.2 mm
Weight	1150 g
