174 Removal and replacement ENWW
Transfer roller
1 Remove all of the covers and the control-panel assembly (see pages 113 through 124).
2 Remove the laser/scanner plate (page 144).
3 Use needle-nose pliers to pinch the tabs on the transfer roller bushings, one at each side of
the transfer roller.

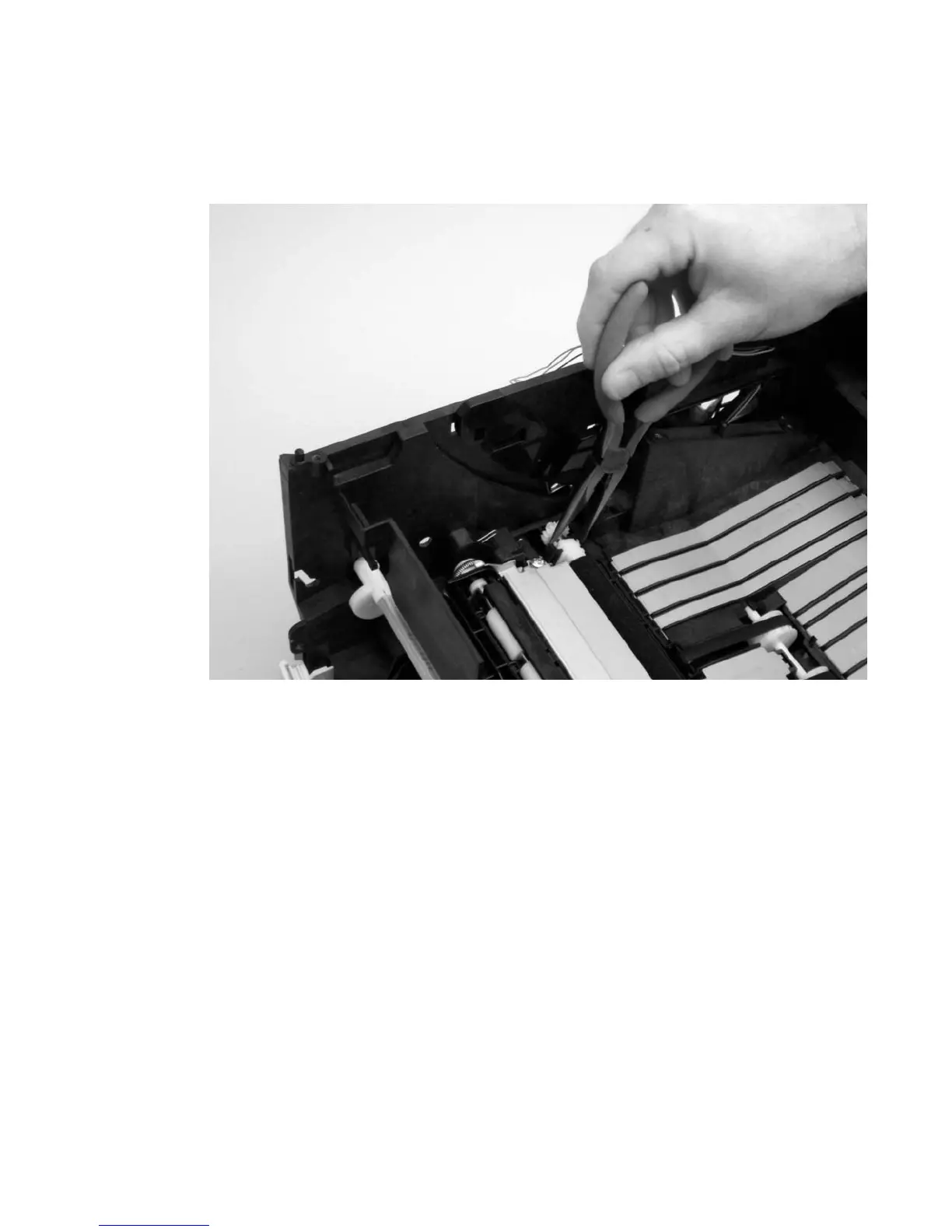

Figure 99. Removing the transfer roller
4 Lift the transfer roller out of the printer.
Reinstall note
The spring at the left side of the transfer roller should remain attached to the bushing. Before you
reinstall the roller, make sure that the spring is attached. The spring at the right side should
remain in the printer.
