176 Removal and replacement ENWW
Trays
250-sheet feeder and 500-sheet feeder pickup roller
Note Procedures for removing the pickup roller from a 250-sheet feeder are identical to the procedures
for removing the pickup roller from a 500-sheet feeder. In the photographs for these procedures,
a 500-sheet feeder is shown.
1 Lift the printer off of the feeder and then remove all of the paper from the feeder.
2 Press down the lift plate and pull the tray out of the feeder.
3 Turn the feeder so that it rests on its back side.
4 Insert the flatblade screwdriver into the slot on the right roller-shaft cover (callout 1) and then
pry the cover off of the feeder.
5 Insert the flatblade screwdriver into the slot (callout 2) on the left roller-shaft cover and then
pry the cover off of the feeder.

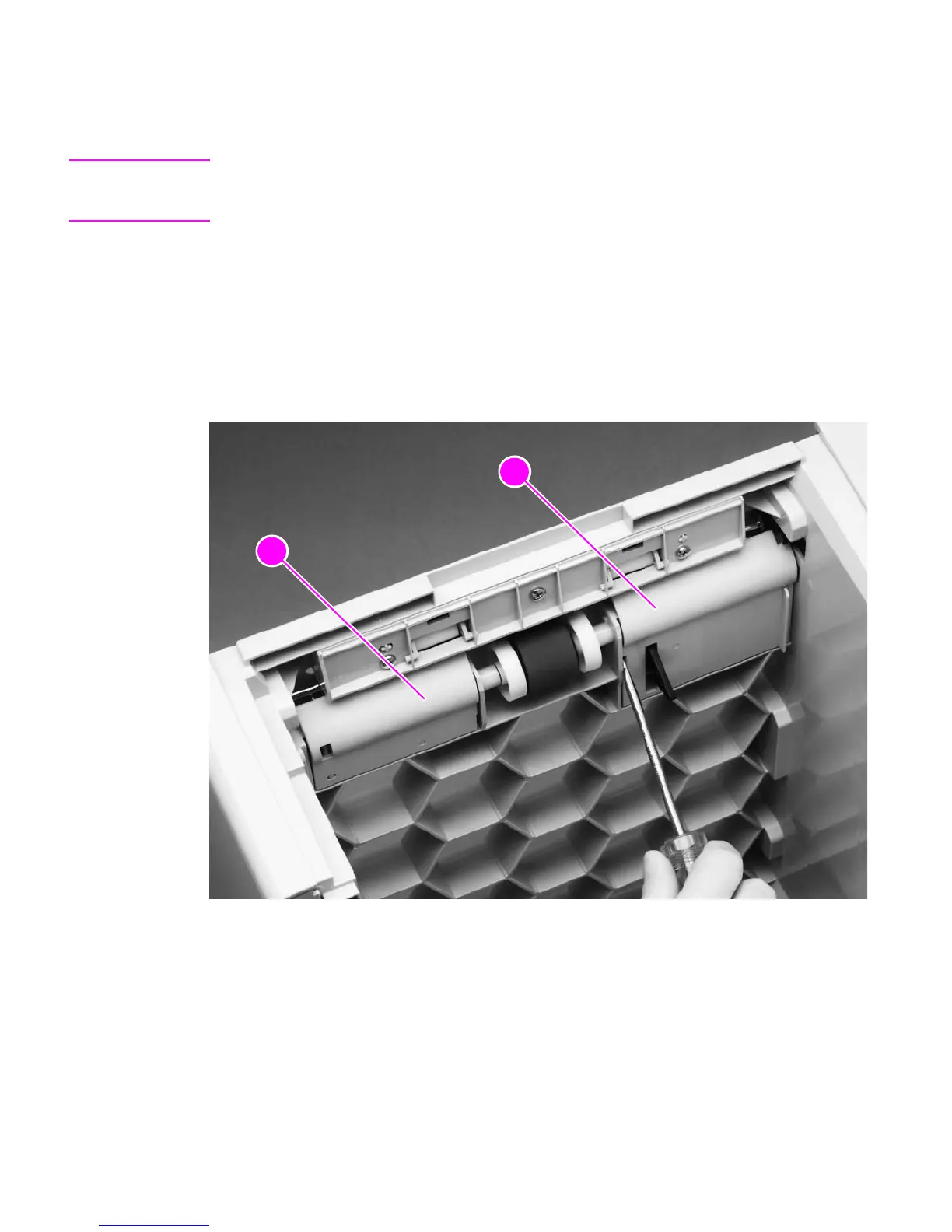

Figure 101. Removing the pickup roller from a 250-sheet or 500-sheet feeder (1 of 2)
2
2
1
2
