Troubleshooting
Paper Path and Components
Paper Path and Components
I
DC Controller PCA

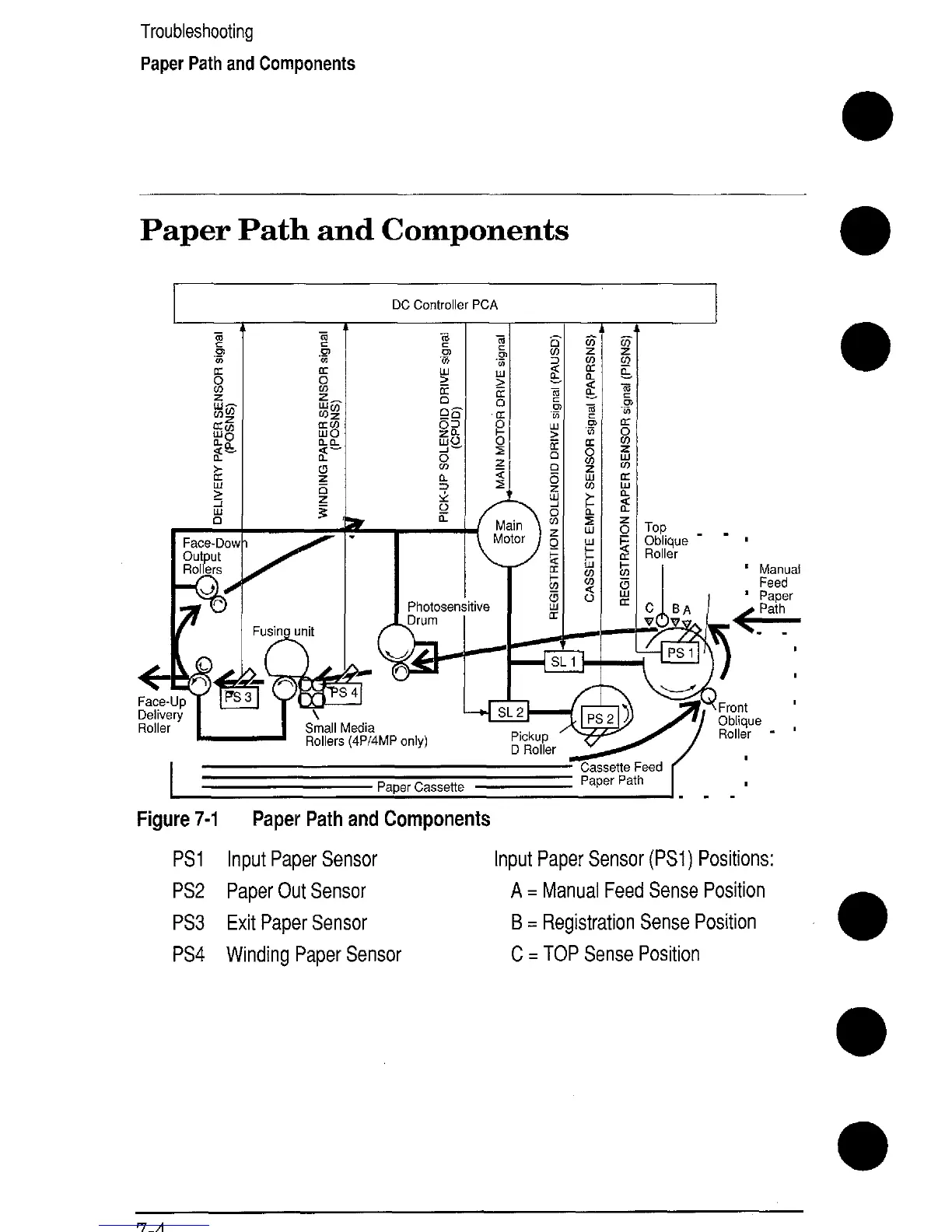

Figure 7-1
Psl
PS2
PS3
PS4
Paper Path and Components
Input Paper Sensor
Input Paper Sensor (PSI ) Positions:
Paper Out Sensor
A = Manual Feed Sense Position
Exit Paper Sensor
B = Registration Sense Position
a
Winding Paper Sensor C = TOP Sense Position
7-4
