1/0 Information
Connecting to LocalTalk Networks
(LaserJet 4ML/ 4MP)
Comecting to LocalTalk Networks
(LaserJet 4MU 4MP)
The printer does not come with a LocalTalk network cable. Use a
standard LocalTalk network cable and connector kit, such as the
HP LocalTalk Network Cable Kit, part number 92215N. You will
need one connector kit for each printer on the network, and
another for each Macintosh computer on the network.
Connecting to the END of a LocalTalk Network

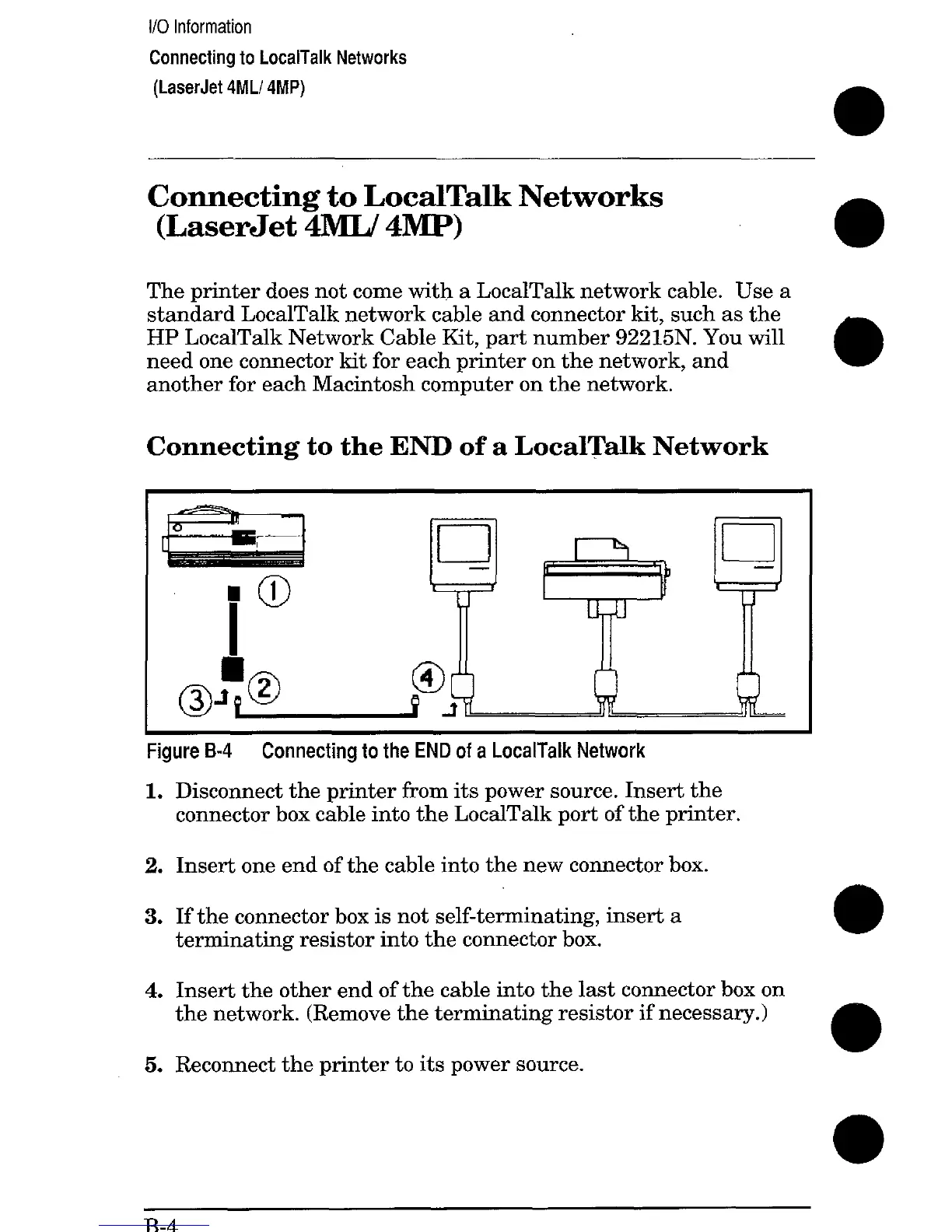

Figure B-4 Connecting to the END of a LocalTalk Network
1.
2.
3.
4.
5.
—
Disconnect the printer from its power source. Insert the
connector box cable into the LocalTalk port of the printer.
Insert one end of the cable into the new connector box.
If the connector box is not self-terminating, insert a
terminating resistor into the connector box.
Insert the other end of the cable into the last connector box on
the network. (Remove the terminating resistor if necessary.)
Reconnect the printer to its power source.
B-4
