HP LaserJet 5200 - Page 158

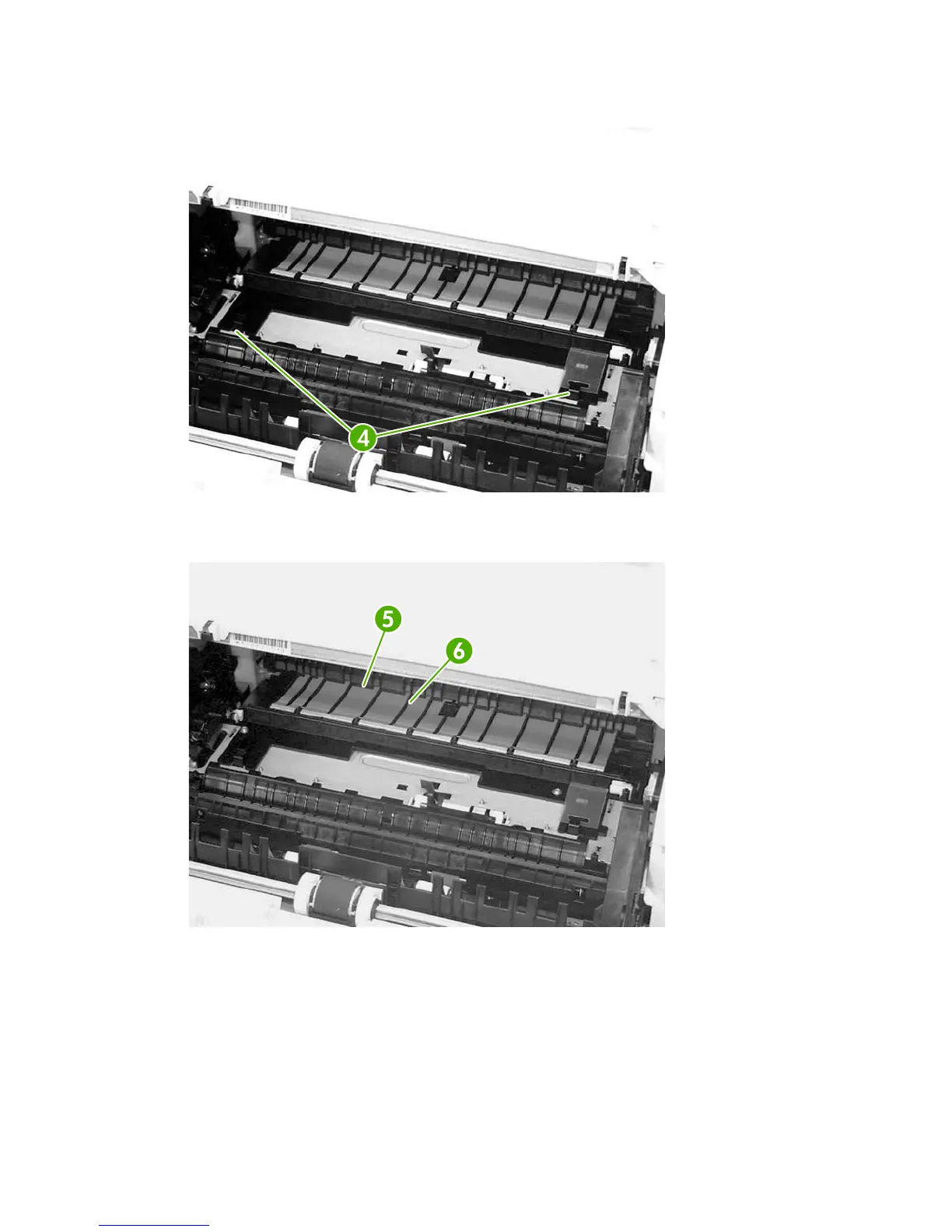

5. Unhook two claws (callout 4).
Figure 5-125 Removing the paper-feed unit (3 of 4)
6. Push up and hold the fuser shutter (callout 5) while removing the paper-feed unit (callout 6).
Figure 5-126 Removing the paper-feed unit (4 of 4)
138 Chapter 5 Removal and replacement ENWW
