High-voltage power supply
NOTE You do not need to remove the cartridge door unit to remove the high-voltage power
supply, but you must remove the registration unit.
1. Remove the following components:
●
Right cover. See
Right cover on page 86.
●
Formatter. See
Formatter on page 76.
●
Lower back cover or duplexer. See
Lower back cover on page 86 or Duplexer on page 84.
●
Face-up bin. See
Face-up bin on page 87.
●
Top cover. See
Top cover on page 89.
●
Left cover. See
Left cover on page 92.
●
Transfer roller. See
Transfer roller on page 135.
●
Fuser. See
Fuser on page 112.
2. Use a flatblade screwdriver to release the connector cover (callout 1). Put the point of the
screwdriver at the indicated location (callout 2).

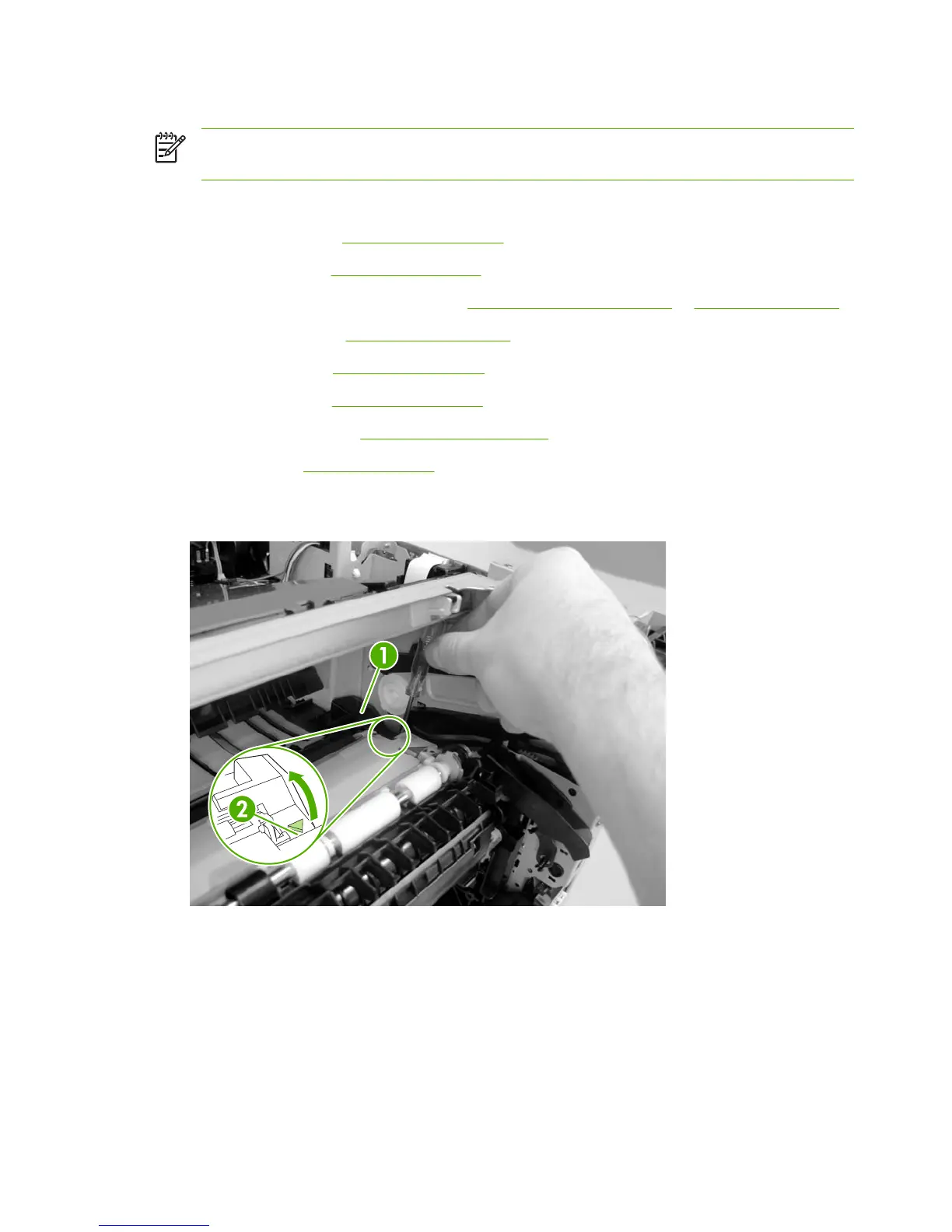

Figure 5-132 Removing the high-voltage power supply (1 of 17)
142 Chapter 5 Removal and replacement ENWW
