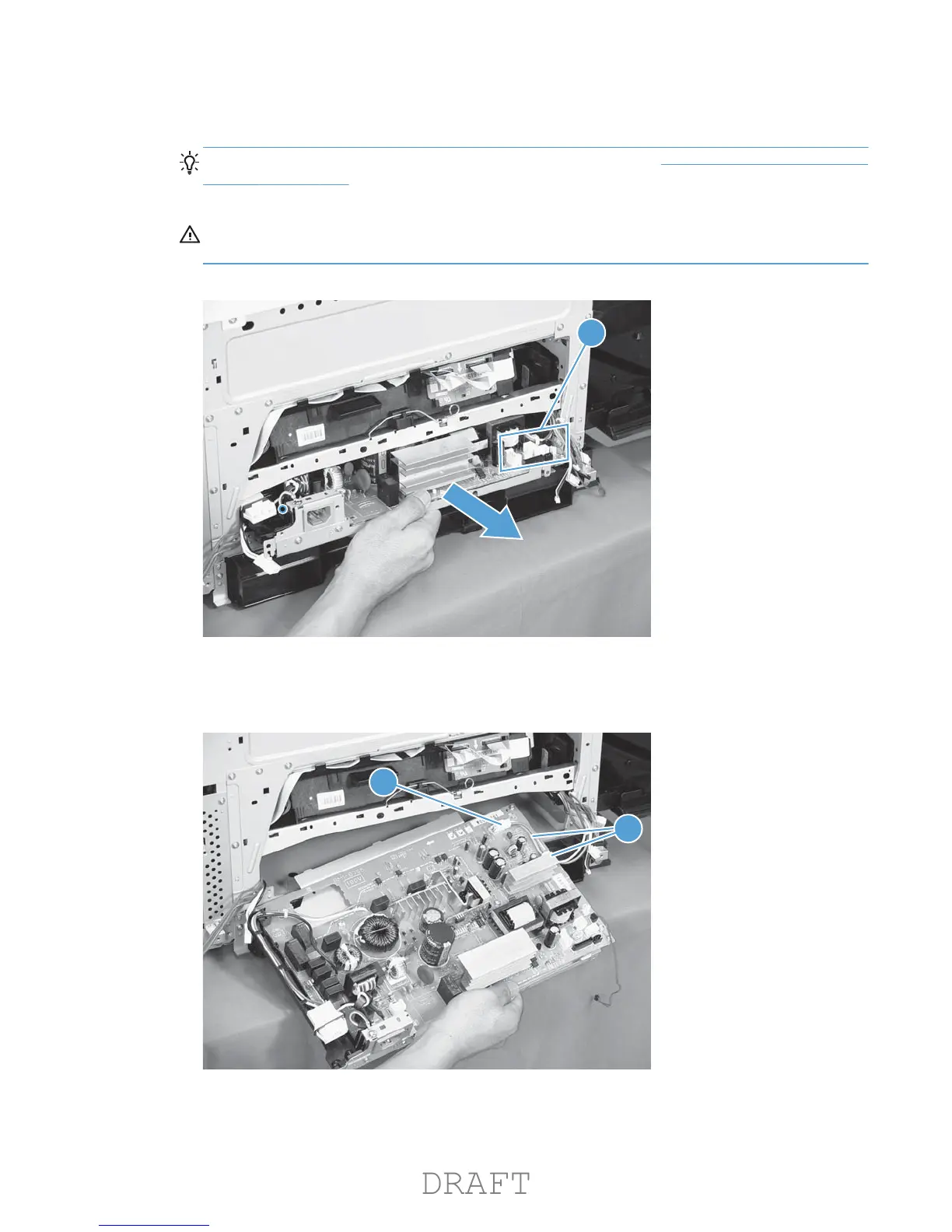

5. Disconnect eight connectors (callout 1), and then continue to carefully pull the LVPS out of the
product.
Reinstallation tip The wire harness disconnected in step 2 (see Figure 1-257 Remove the LVPS
(2 of 6) on page 187), is not captive when one of the connectors in this step is disconnected. If
you are installing a replacement LVPS, install this harness on the assembly.
CAUTION: The power supply is still connected to the product by a wire harness. Do not attempt
to completely remove the power supply.
Figure 1-260 Remove the LVPS (5 of 6)
1
6. Disconnect one rear connector (callout 1), release the wire harness from two retainers (callout 2),
and then remove the LVPS.
Figure 1-261 Remove the LVPS (6 of 6)
1
2
