4. Release two tabs (callout 1), and then release the right and left links (callout 2).

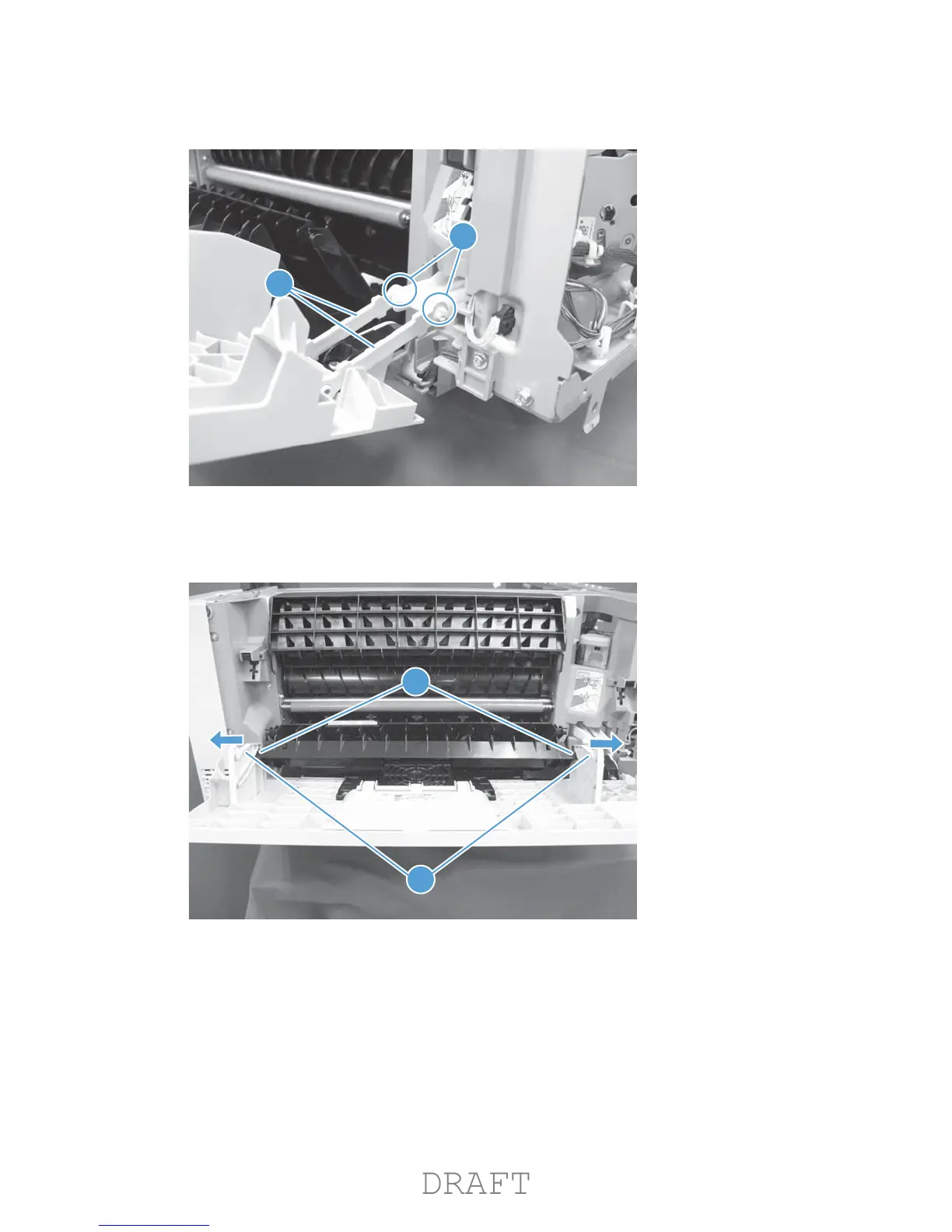

Figure 1-408 Remove the stapler/stacker right door (3 of 4)
1
2
5. Carefully flex the sides of the door (callout 1) to release two pins (callout 2), and then remove the
door.
Figure 1-409 Remove the stapler/stacker right door (4 of 4)
1
2
304 Chapter 1 Removal and replacement ENWW
