Drum motor (M1) and developer motor (M2)
This procedure can be used to remove the drum motor (M1) or the developer motor (M2). HP does not
recommend removing both of the motors at the same time.
1. Remove the right cover. See Right cover on page 25.
2. Disconnect one connector (callout 1) for motor M1 or motor M2.
NOTE: The drum motor (callout 2) is motor M1. The developer motor (callout 3) is motor M2.

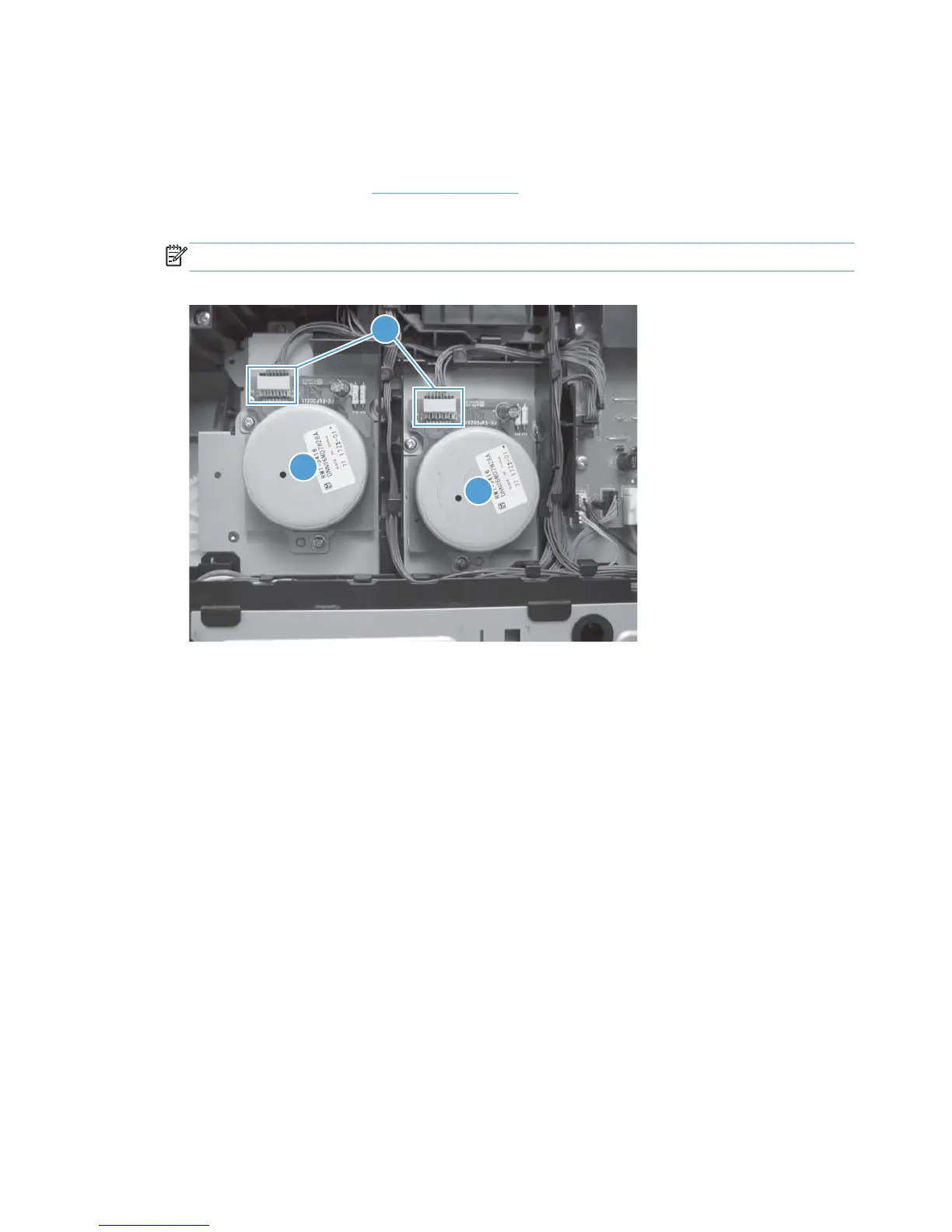

Figure 1-78 Remove motor M1 and motor M2 (1 of 6)
