Step 6: separation from the drum
The elasticity of the print media and the curvature of the ITB drive roller cause the media to separate from
the ITB.

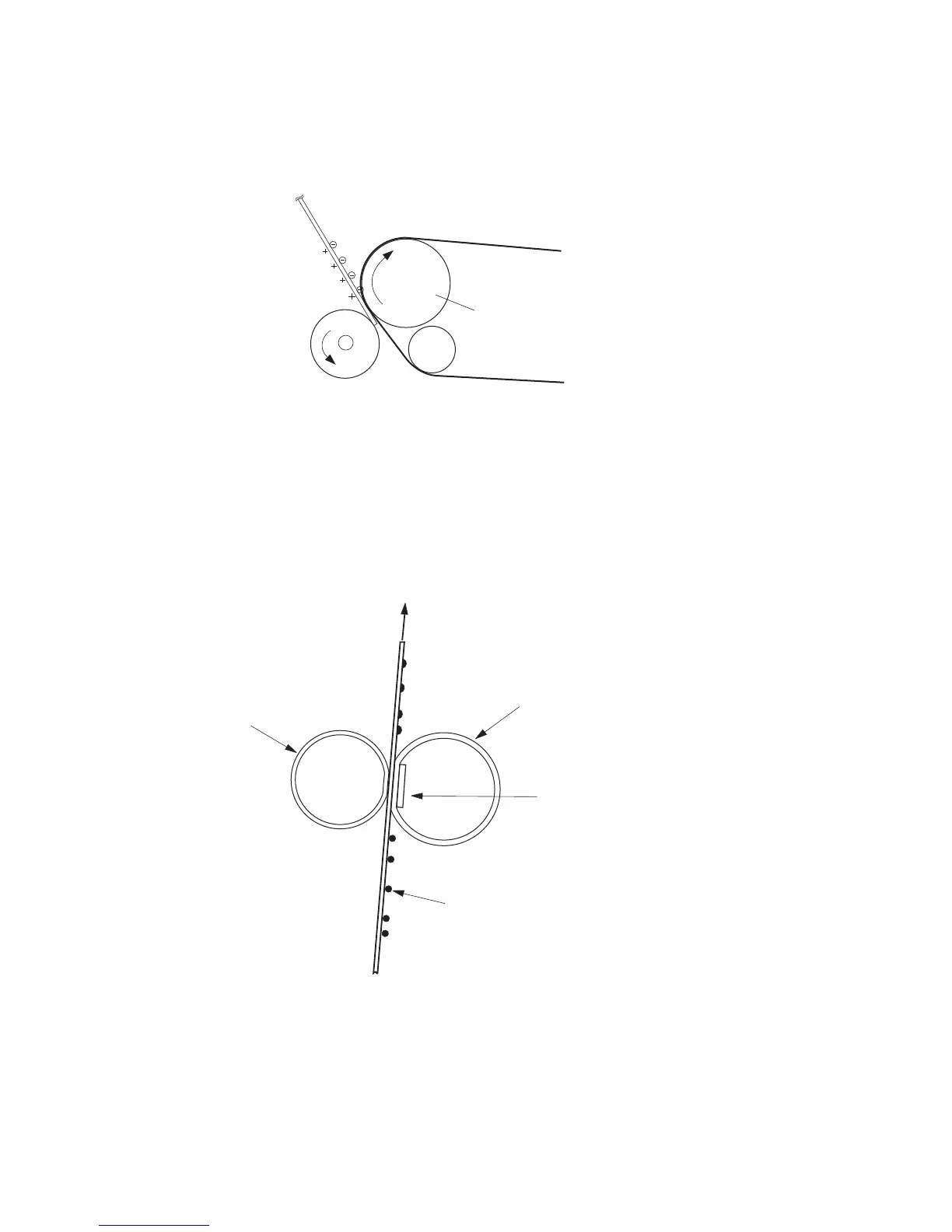

Figure 1-16 Separation from the drum
ITB
Secondary transfer roller
Media
ITB drive roller
Fusing stage
Until the fusing stage is complete, the image is not permanently affixed to the print media. The toner can be
easily smudged until the heat and pressure of the fusing process fix the image to the sheet.
Step 7: fusing
The product uses an on-demand fusing method to fuse the toner image onto the media. The toner image is
permanently affixed to the print media by the heat and pressure.
Figure 1-17 Fusing
Media
Pressure roller
Fuser film
Toner
Fuser heater
