HP LP2275w

22" LCD Color Monitor HP LP2275w
12

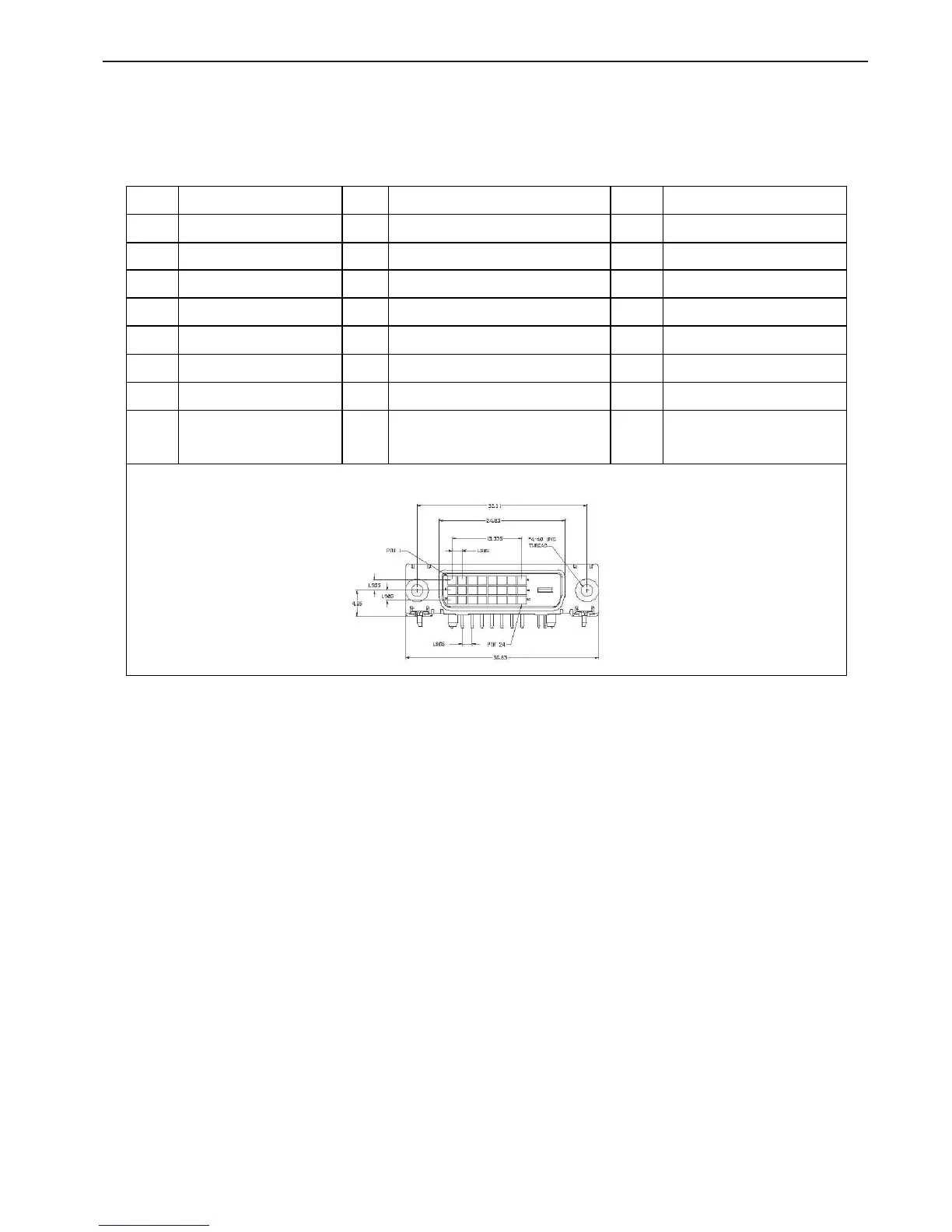

4. Input/Output Specification
4.1 Input Signal Connector
Pin Signal Pin Signal Pin
Signal
1
TMDS Data 2 -
9
TMDS Data 1 -
17
TMDS Data 0 -
2 TMDS Data 2 + 10 TMDS Data 1 + 18 TMDS Data 0 +
3
TMDS Data 2 / 4 Shield
11
TMDS Data 1 / 3 Shield
19
TMDS Data 0 / 5 Shield
4
TMDS Data 4 -
12
TMDS Data 3 -
20
TMDS Data 5 -
5
TMDS Data 4 +
13
TMDS Data 3 +
21
TMDS Data 5 +
6
DDC Clock
14
+3.3/+5V Power (from PC)
22
TMDS Clock Shield
7
DDC Data
15
Ground (Return for +5V)
23
TMDS Clock +
8
No Connect
16
Hot Plug Detect (connect internally
to pin-14)
24
TMDS Clock -
DVI-D digital connector layout
