2. Pull the FFC cover off of the FFC.

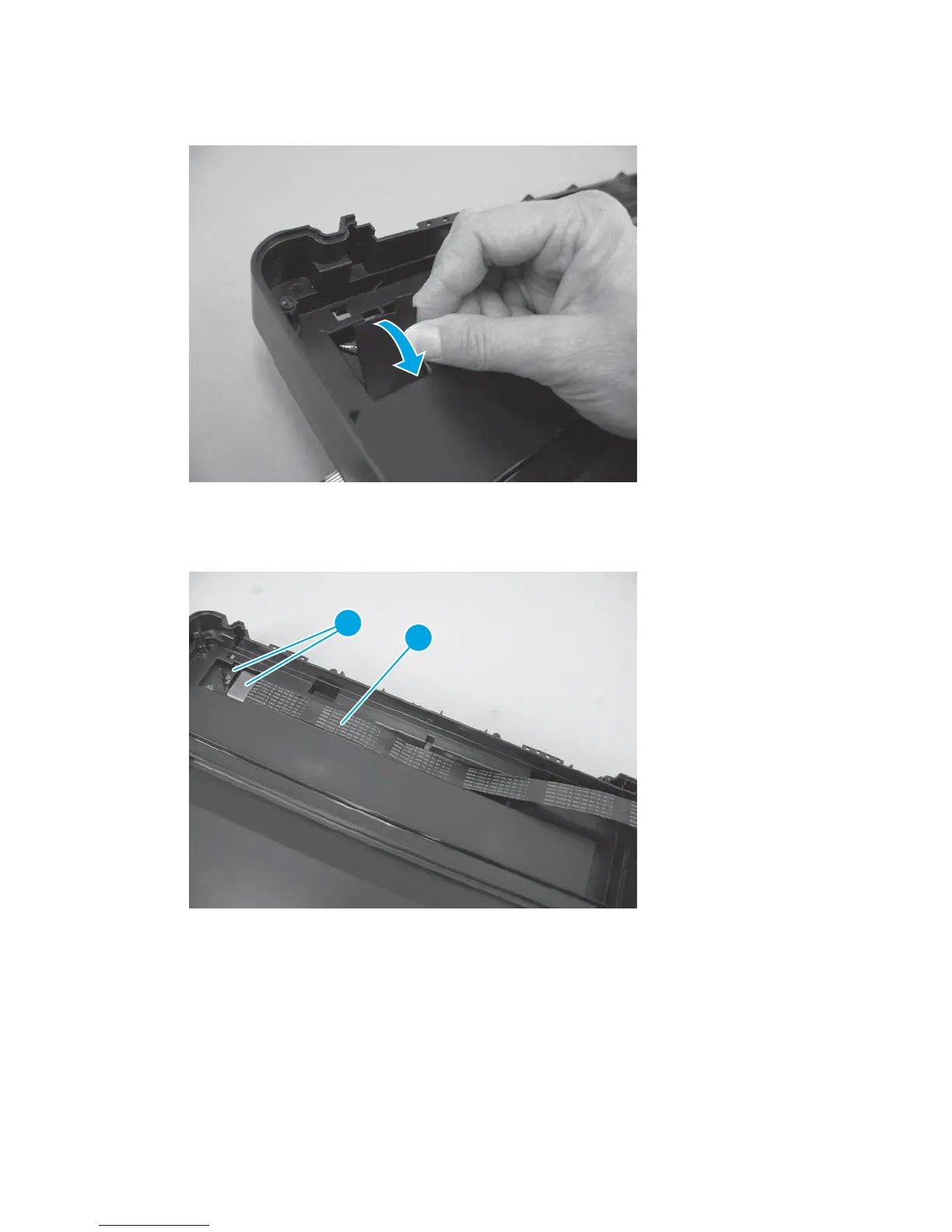

Figure 1-122 Remove the scan FFC cable (2 of 3)
3. Unthread the FFC through the ferrite and the guides (callout 1), and then loosen the adhesive to remove
the FFC (callout 2).
Figure 1-123 Remove the scan FFC cable (3 of 3)
2
1
