Scan motor
Before proceeding, remove the following components:
●
Scan bezel. See
Scan bezel on page 82.
●
Scan drive system. See
Scan drive system on page 84.
CAUTION: Perform these procedures in a dust-free environment.
Remove the scan motor
1. On the bottom of the scan drive system, remove one Torx T10 screw (callout 1), and lift off the metal
bracket (callout 2).

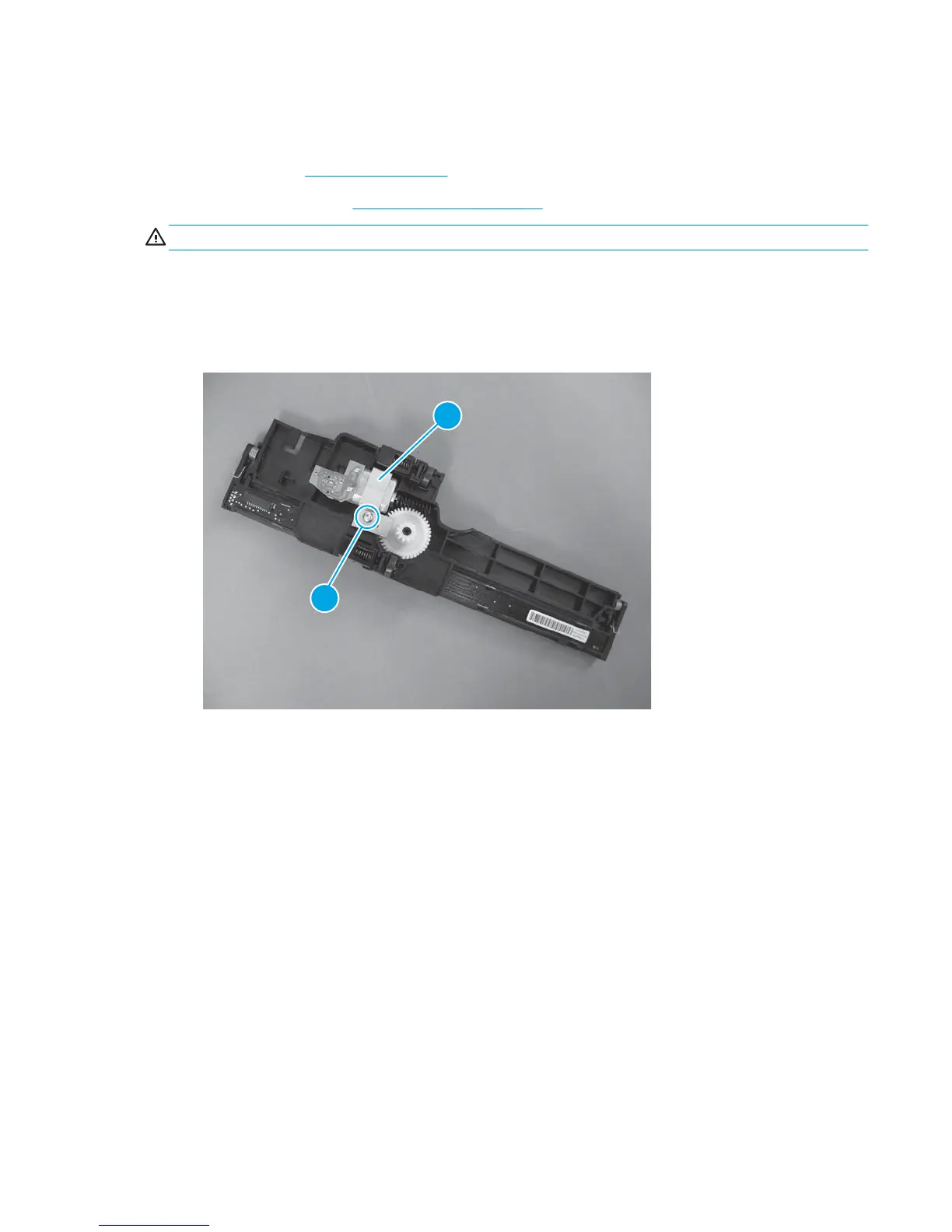

Figure 1-124 Remove the scan motor (1 of 2)
1
2
ENWW Removal and replacement procedures 87
