3. Remove the assembly.

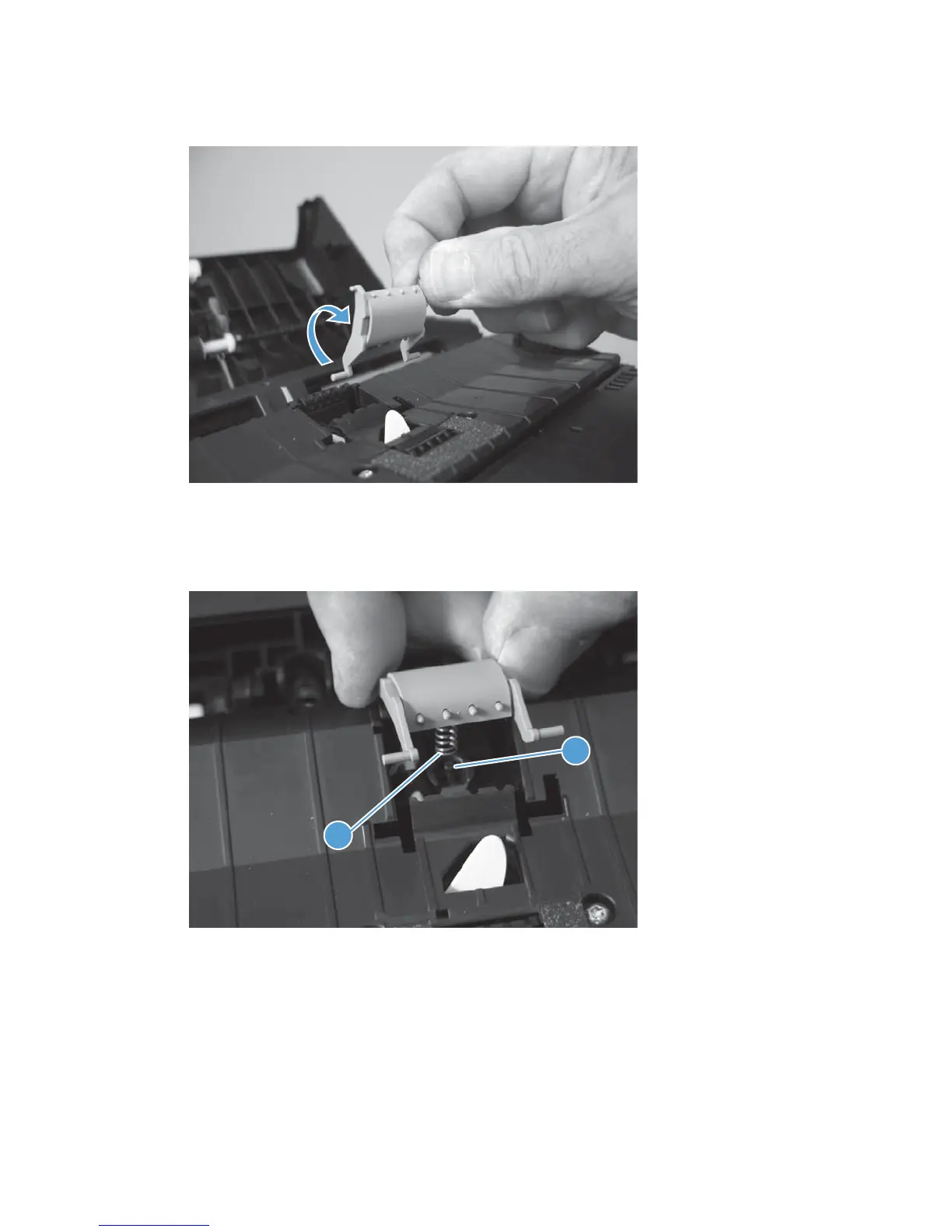

Figure 1-136 Remove the ADF separation pad assembly (3 of 3)
Reinstall the ADF separation pad assembly
1. Place the base of the spring (callout 1) on the pedestal (callout 2).
Figure 1-137 Reinstall the ADF separation pad assembly (1 of 5)
2
1
