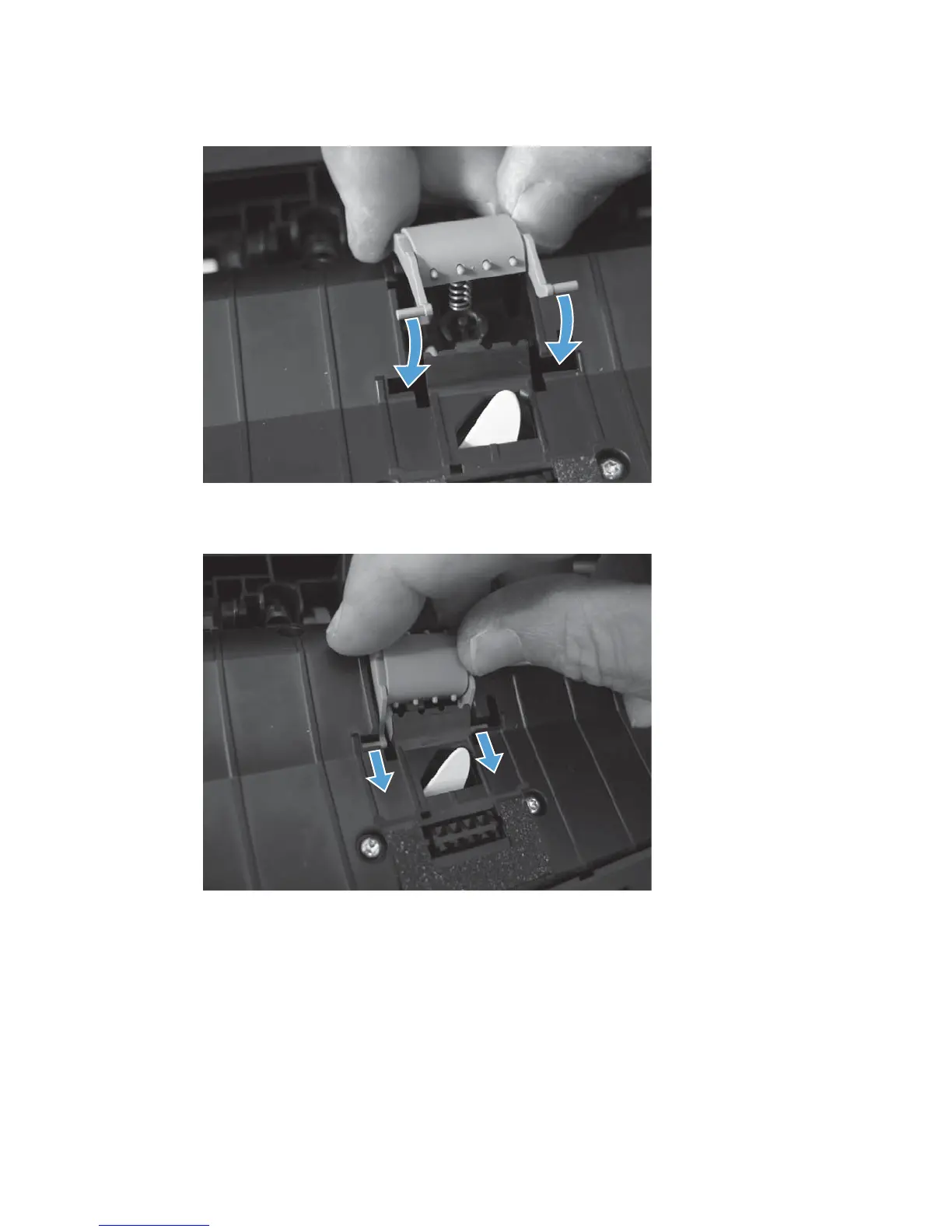

2. Place the assembly hinge pins in the slots in the ADF core.
Figure 1-138 Reinstall the ADF separation pad assembly (2 of 5)
3. Slightly slide the assembly down and into the slots in the product to engage the hinge pins.
Figure 1-139 Reinstall the ADF separation pad assembly (3 of 5)
