4. Locate the upper locking pins.
NOTE: When the assembly is correctly installed, these pins are engaged in a slot in the ADF core, and
the spring underneath the assembly keeps the assembly in the raised position.

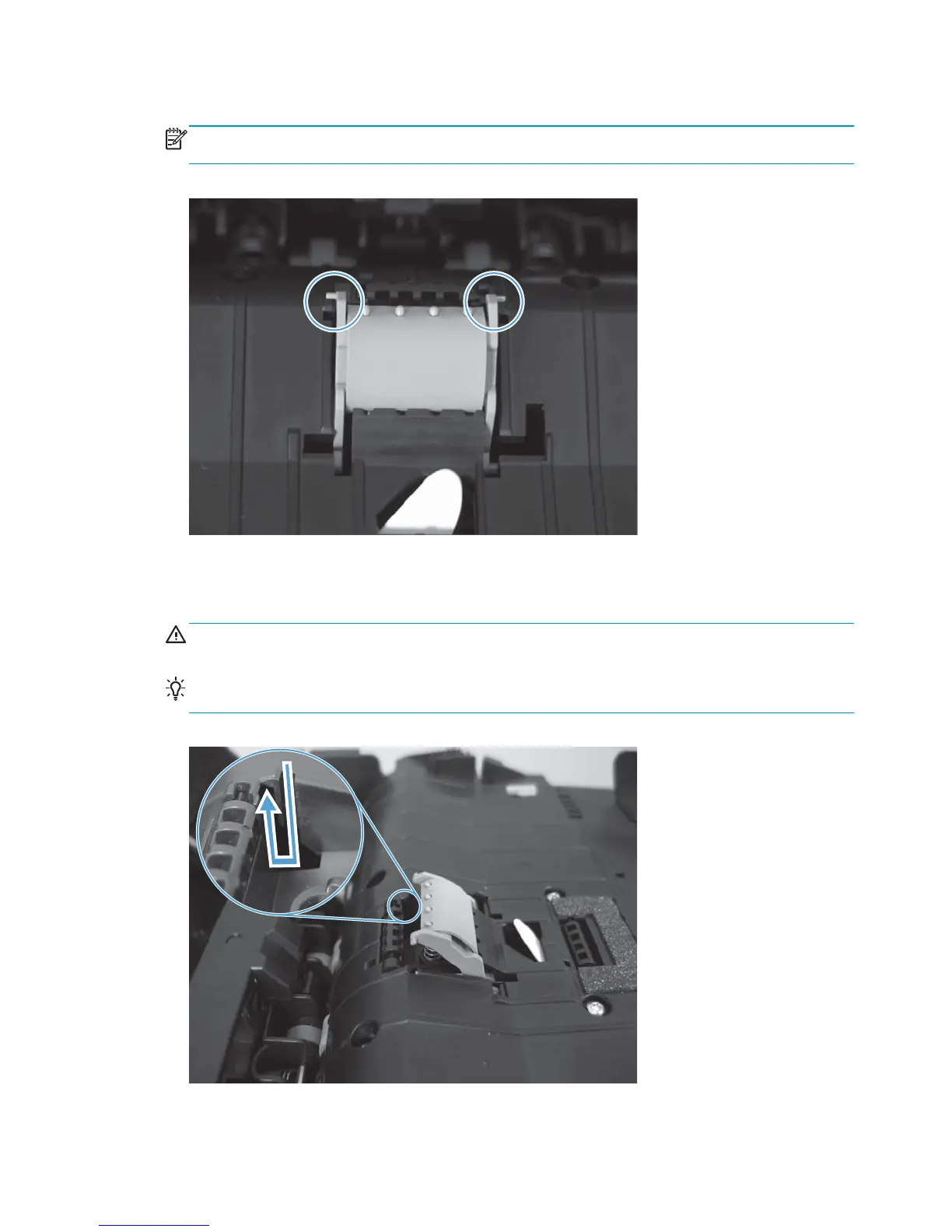

Figure 1-140 Reinstall the ADF separation pad assembly (4 of 5)
5. Push down on the assembly until the pins reach the bottom of the slot in the ADF core, and then slightly
slide the assembly toward the left side of the product to engage the locking pins in the closed slot.
Release the assembly.
CAUTION: The pins on the assembly are fragile and can easily be broken off. Do not force the
assembly into place, or the pins might break.
TIP: Slightly tip the assembly and engage one pin, and then tip the assembly in the opposite direction
to engage the second pin.
Figure 1-141 Reinstall the ADF separation pad assembly (5 of 5)
96 Chapter 1 Removal and replacement ENWW
