Rear door and secondary transfer assembly
Before proceeding, remove the following components:
●
Left cover. See
Left cover on page 12.
●
Right cover. See
Right cover on page 18.
Remove the rear door and secondary transfer assembly
1. Remove one screw (callout 1) and the bushing (callout 2).

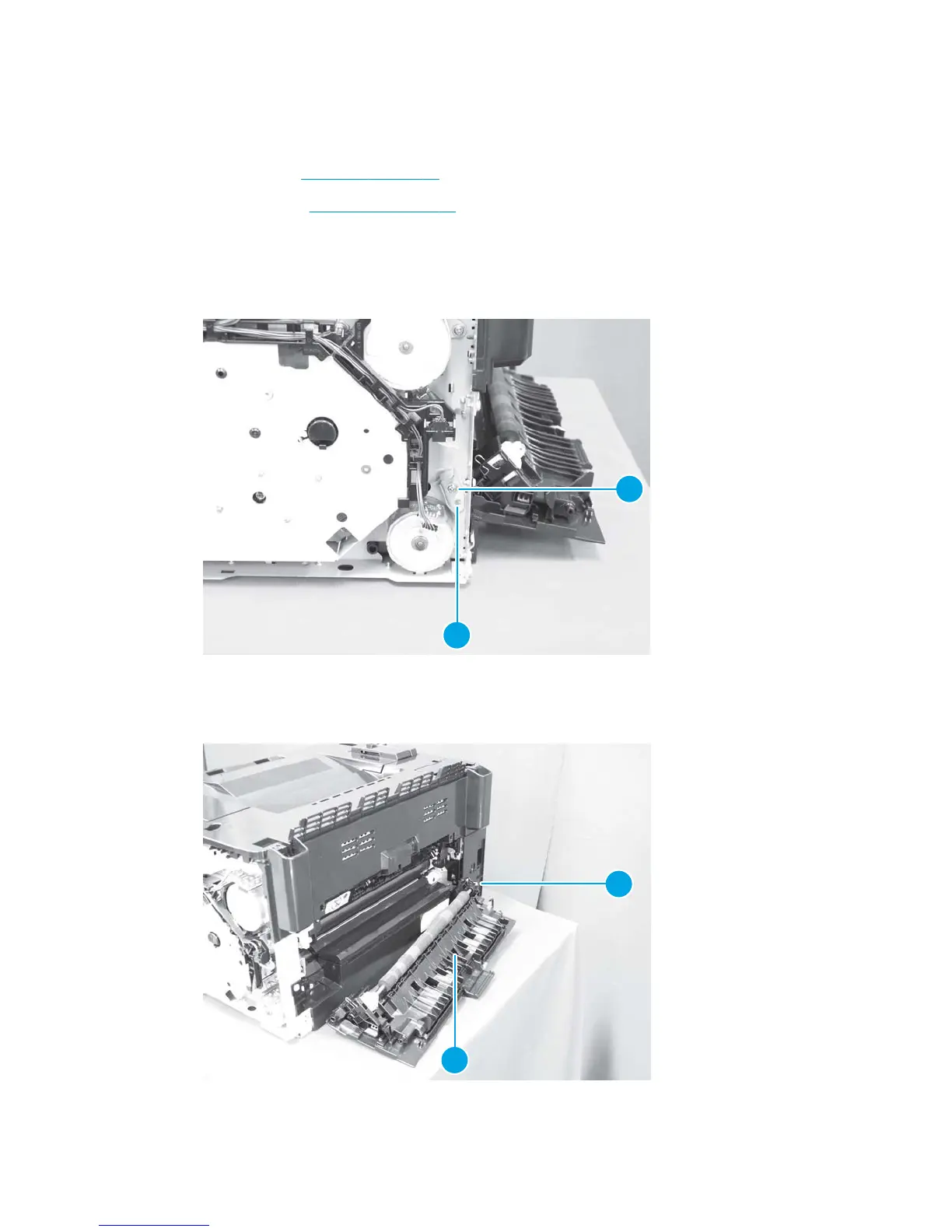

Figure 1-46 Remove the rear door and secondary transfer assembly (1 of 2)
2
1
2. Pull out the shaft (callout 1) and remove the rear door assembly and secondary transfer assembly
(callout 2).
Figure 1-47 Remove the rear door and secondary transfer assembly (2 of 2)
2
1
ENWW Removal and replacement procedures 37
