Fax PCA (M177 model)
CAUTION: ESD sensitive.
Before proceeding, remove the following components:
●
Left cover. See
Left cover on page 12.
●
Wireless PCA. See
Wireless PCA (M177 model) on page 42.
Remove the fax PCA (M177 model)
1. Remove one FFC (callout 1).

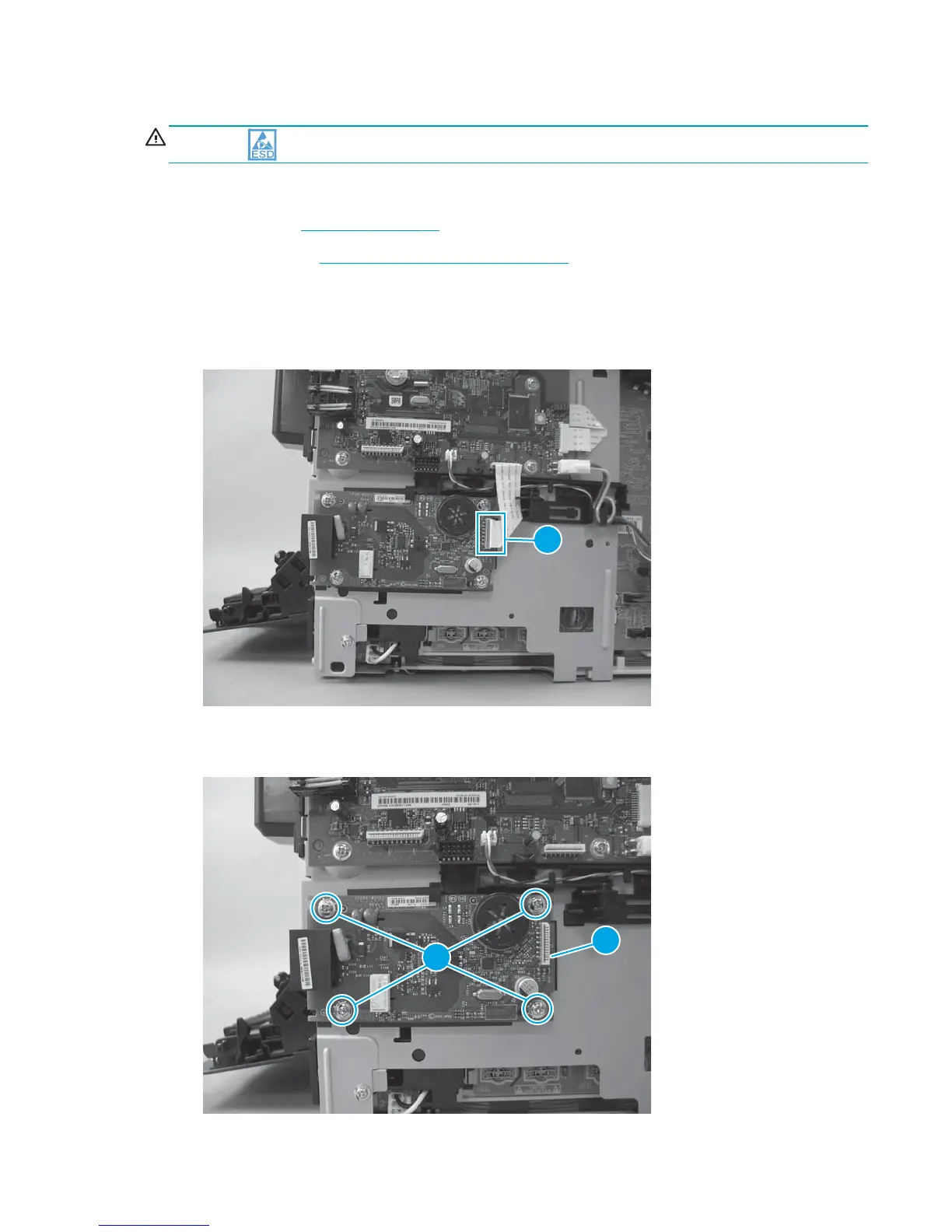

Figure 1-58 Remove the fax PCA for the M177 model (1 of 2)
1
2. Remove four screws (callout 1), and remove the fax PCA (callout 2).
Figure 1-59 Remove the fax PCA for the M177 model (2 of 2)
2
1
ENWW Removal and replacement procedures 45
