Control panel FFC
Before proceeding, remove the following components:
●
Dust cover, input tray, and extension tray. See
Dust cover, input tray, and extension tray on page 9.
●
Left cover. See
Left cover on page 12.
●
Document feeder (M177 model only), scanner, and flat cable cover. See
Document feeder, scanner, and
flat cable cover (M177 model only) on page 14 or Scanner and flat cable cover (M176 model only)
on page 16.
●
Right cover. See
Right cover on page 18.
●
Top cover. See
Top cover on page 20.
●
Inner cover. See
Inner cover on page 28.
●
Grounding cable cover and right top cover. See
Grounding cable cover and right top cover on page 30.
●
Control panel. See
Control panel on page 32.
●
Cartridge door. See
Cartridge door on page 35.
Remove the control panel FFC
1. Remove one tapping screw (callout 1), and slide the hinge (callout 2) to the right to remove it.

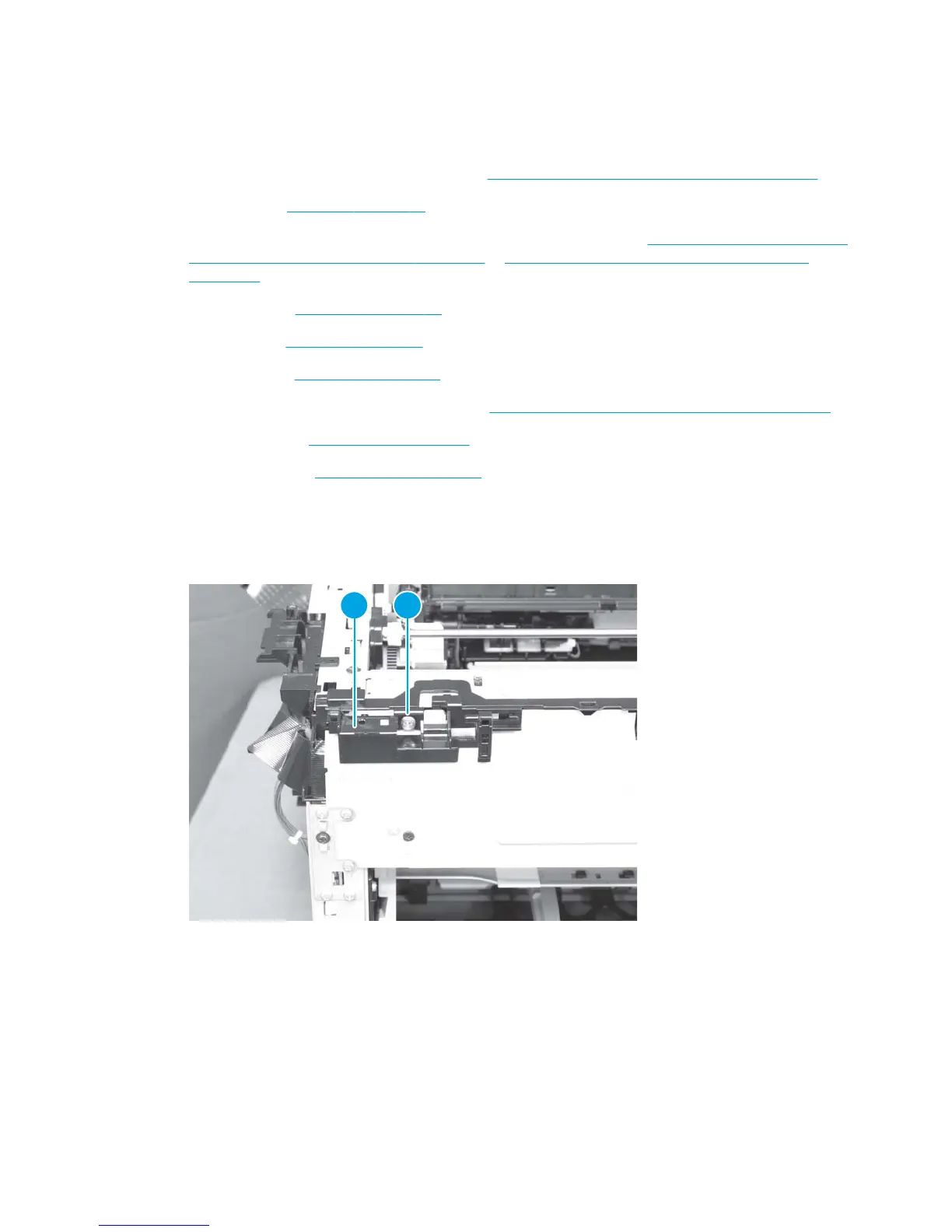

Figure 1-60 Remove the control panel FFC (1 of 5)
1
2
46 Chapter 1 Removal and replacement ENWW
