Engine controller assembly and formatter-engine FFC
CAUTION: ESD sensitive.
Before proceeding, remove the following components:
●
Dust cover, input tray, and extension tray. See
Dust cover, input tray, and extension tray on page 9.
●
Left cover. See
Left cover on page 12.
●
Document feeder (M177 model only), scanner, and flat cable cover. See
Document feeder, scanner, and
flat cable cover (M177 model only) on page 14 or Scanner and flat cable cover (M176 model only)
on page 16.
●
Right cover. See
Right cover on page 18.
●
Top cover. See
Top cover on page 20.
●
Inner cover. See
Inner cover on page 28.
●
Wireless PCA (M177 model only).
Wireless PCA (M177 model) on page 42.
●
Formatter PCA. See
Formatter PCA (M176 model) on page 39 or Formatter PCA (M177 model)
on page 44.
●
Fax PCA. See
Fax PCA (M177 model) on page 45.
Remove the engine controller assembly and formatter-engine FFC
1. Disconnect the formatter-engine FFC (callout 1) and release the cables from the cable guides (callout 2).

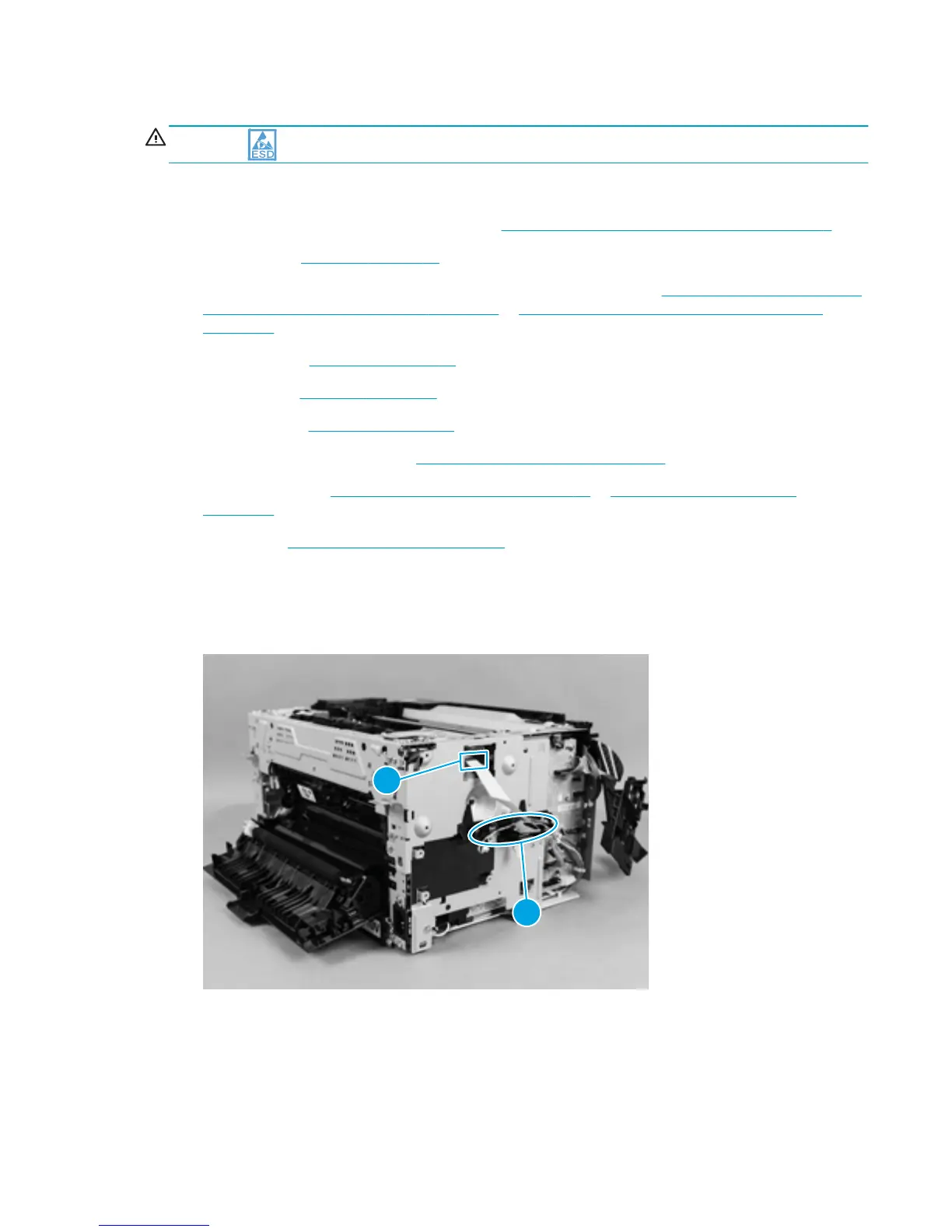

Figure 1-65 Remove the formatter-engine FFC
1
2
ENWW Removal and replacement procedures 49
