2. Remove four screws (callout 1) and one black screw (callout 2), and then remove the PCA plate (callout
3).

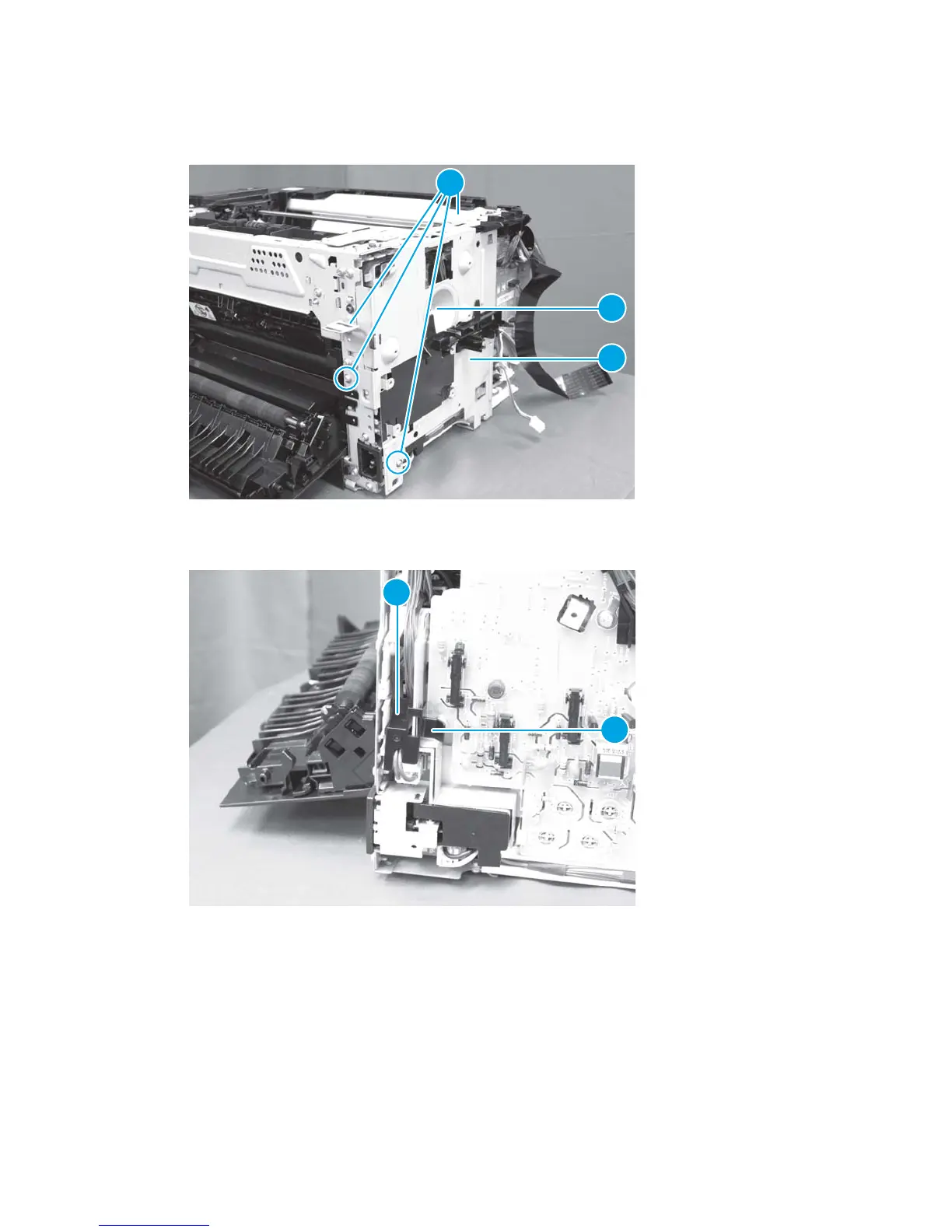

Figure 1-66 Remove the engine controller assembly (1 of 6)
1
2
3
3. Release one tab (callout 1) and remove the cable cover (callout 2).
Figure 1-67 Remove the engine controller assembly (2 of 6)
2
1
50 Chapter 1 Removal and replacement ENWW
