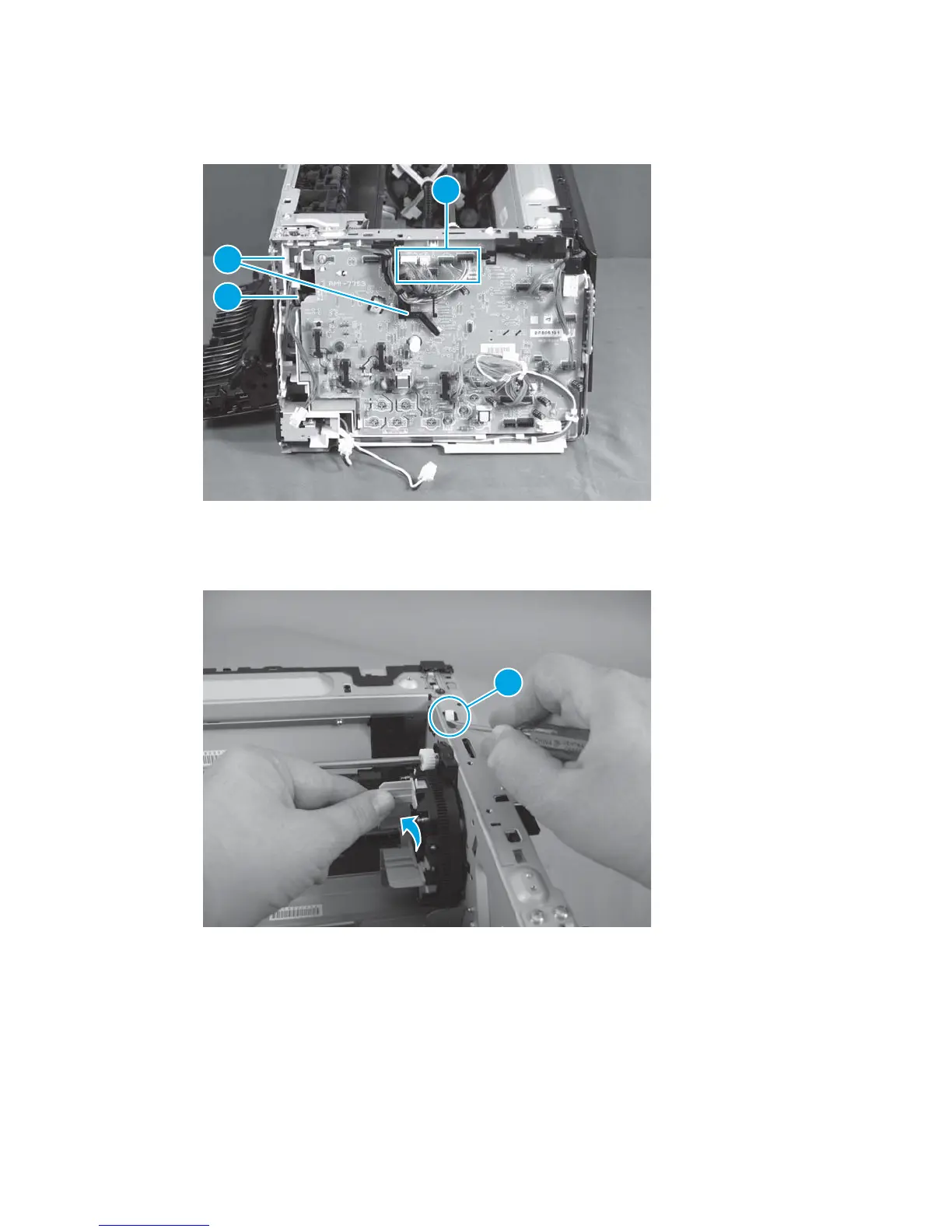

6. Disconnect five connectors (callout 1), and then release the cables (callout 2) from the cable guides
(callout 3).
Figure 1-78 Remove the fuser delivery assembly (6 of 9)
1
3
2
7. Press the cartridge release lever (callout 1) and rotate the toner cartridge carousel toward the front of
the product to make more room to remove the fuser delivery assembly.
Figure 1-79 Remove the fuser delivery assembly (7 of 9)
1
ENWW Removal and replacement procedures 57
