Low-voltage power supply assembly (LVPS) and support frame
CAUTION: ESD sensitive.
Before proceeding, remove the following components:
●
Left cover. See
Left cover on page 12.
●
Right cover. See
Right cover on page 18.
●
Rear door and secondary transfer assembly. See
Rear door and secondary transfer assembly
on page 37.
●
Power supply cover. See
Power supply cover on page 38.
Remove the low-voltage power supply assembly and support frame
1. Disconnect the formatter-engine FFC (callout 1) and release the cables from the cable guides (callout 2)

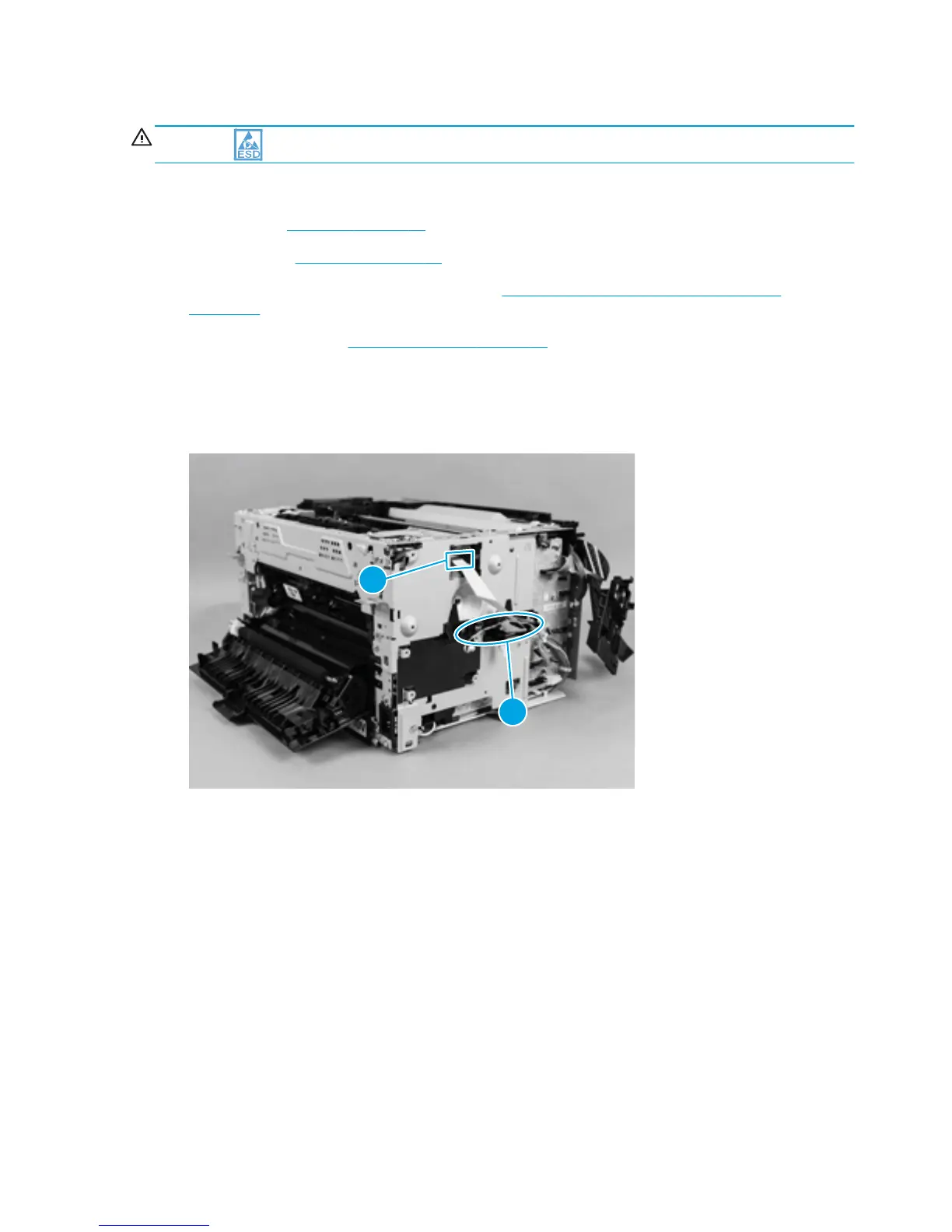

Figure 1-103 Remove the low-voltage power supply assembly and support frame (1 of 10)
1
2
72 Chapter 1 Removal and replacement ENWW
