HP M750 series

Table 1-14 Paper deck motors
Component Component driven Failure
detection
Paper deck cassette 1 pickup motor M1 Paper deck cassette 1 pickup roller, paper deck
cassette 1 separation roller, and paper deck
cassette 1 feed roller
No
Paper deck cassette 1 lifter motor M2 Lifter for the paper deck cassette 1 No
Paper deck cassette 2 pickup motor M81 Paper deck cassette 2 pickup roller, paper deck
cassette 2 separation roller, and paper deck
cassette 2 feed roller
No
Paper deck cassette 2 lifter motor M82 Lifter for the paper deck cassette 2 No
Paper deck cassette 3 pickup motor M91 Paper deck cassette 3 pickup roller, paper deck
cassette 3 separation roller, and paper deck
cassette 3 feed roller
No
Paper deck cassette 3 lifter motor M92 Lifter for the paper deck cassette 3 No
Pickup-and-feed operation
The pickup-and-feed operation picks up one sheet of paper in the paper deck cassette and feeds it to the
product. The paper deck has three cassettes but each cassette performs the same operation. Paper deck
cassette 3 is used to describe the pickup-and-feed operation in this section.

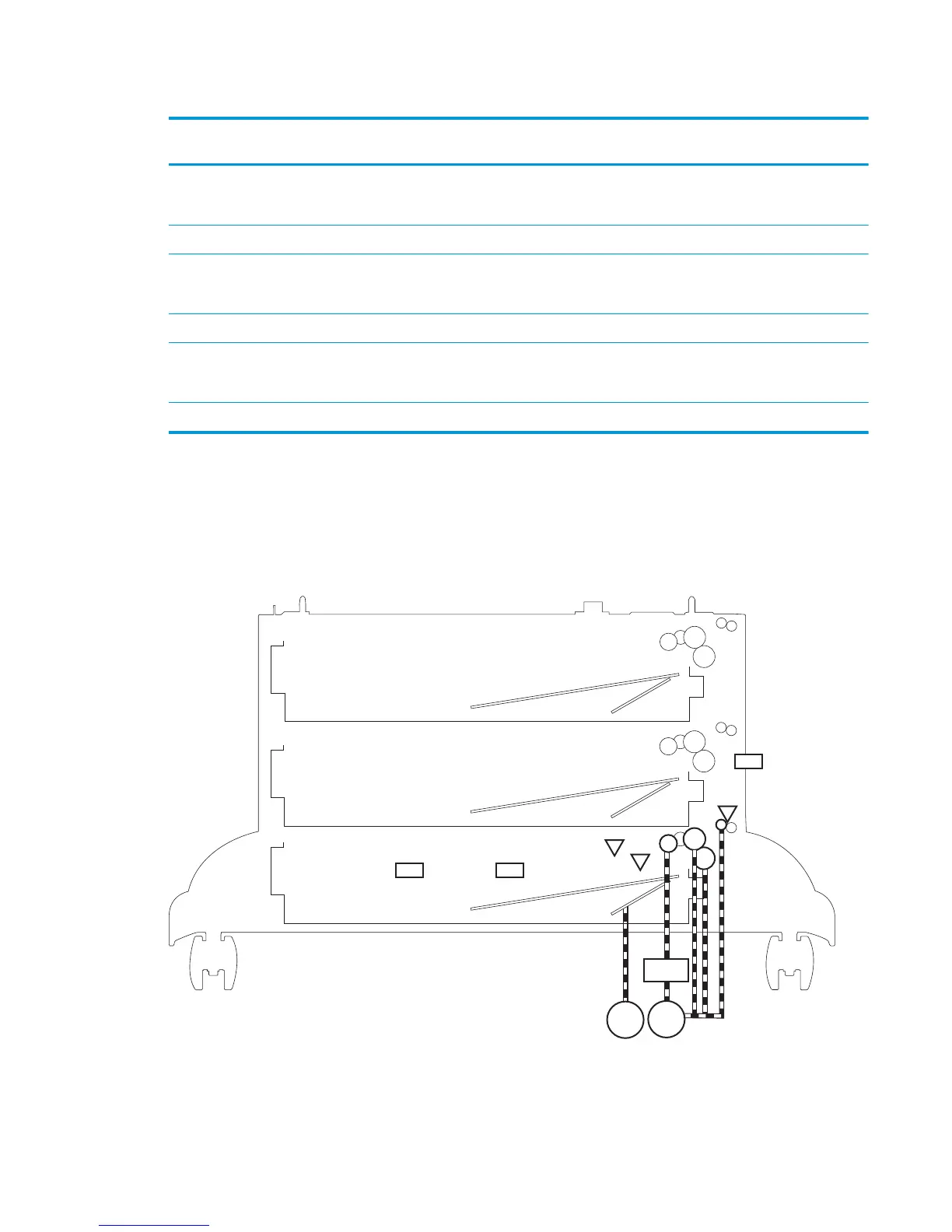

Figure 1-57 Pickup-and-feed operation
M91
M92
SL91
SR1
SW1
SR92
SR93
Paper deck cassette 1
Paper deck cassette 2
Paper deck cassette 3
SW92
SW93
ENWW Optional 3X500-sheet paper deck 75
