Developing motor (M3)
Before proceeding, remove the following components:
Toner collection unit. See
Toner-collection unit on page 88.
Right-front cover and control-panel assembly. See
Right-front cover and control-panel assembly
on page 108.
Left cover. See
Left cover on page 110.
Rear cover. See
Rear cover on page 111.
Toner collection unit access door. See
Toner collection unit access door on page 112.
Right-rear cover. See
Right-rear cover on page 114.
Top cover. See
Top cover on page 115.
Toner cover. See the first and second steps of
Residual toner full sensor on page 145.
Remove the developing motor
Disconnect one connector (callout 1), remove four screws (callout 2), and then remove the motor (callout 3).

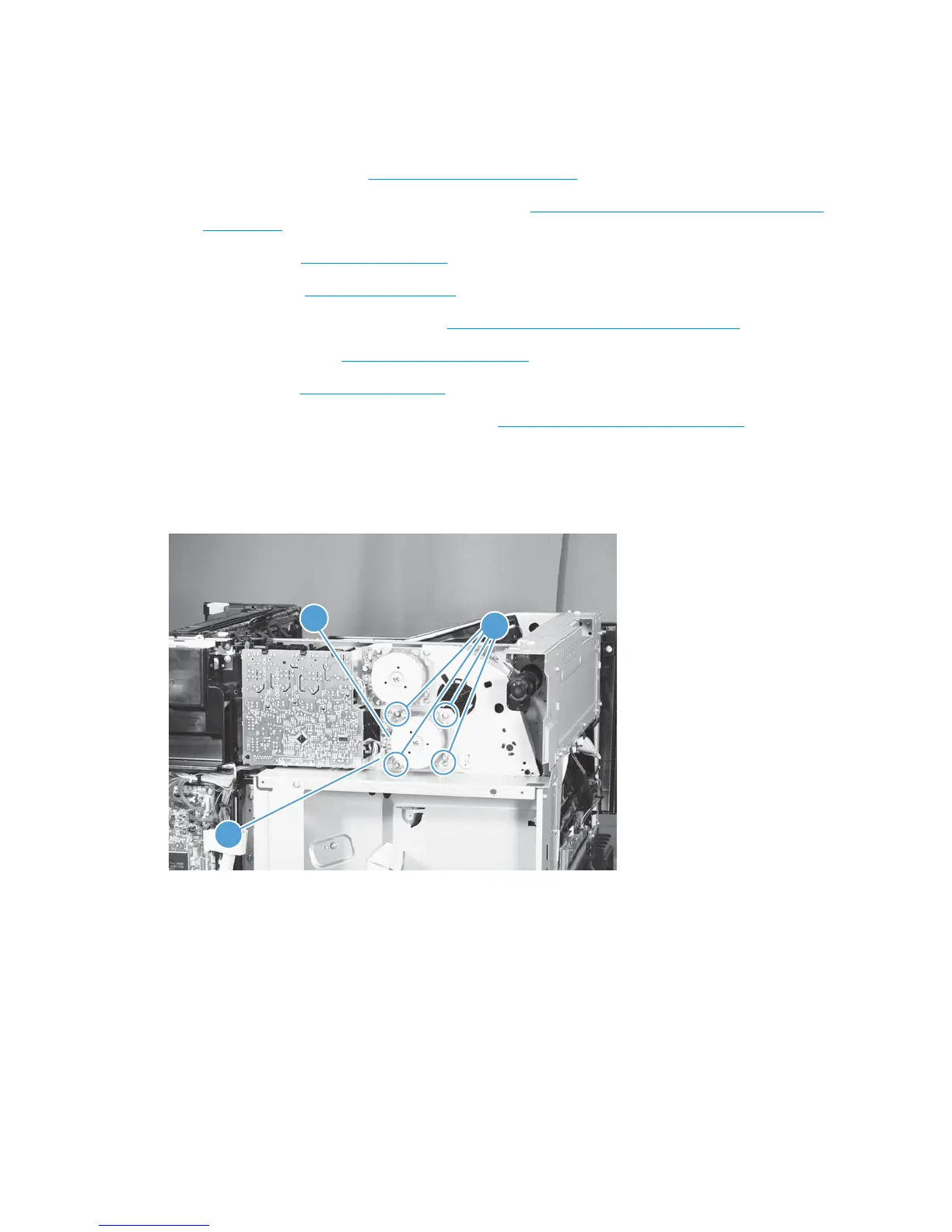

Figure 2-142 Remove the developing motor
2
3
1
ENWW Removal and replacement procedures 187
