Imaging (developing) high-voltage power supply
Before proceeding, remove the following components:
●
Rear cover. See
Rear cover on page 111.
●
Right-rear cover. See
Right-rear cover on page 114.
●
Formatter case. See
Formatter case on page 123.
Remove the imaging (developing) high-voltage power supply
CAUTION: ESD-sensitive part.
Remove one screw (callout 1), release four tabs (callout 2), remove the cable routing plate (callout 3), and
then remove the imaging (developing) high-voltage power supply PCA.
Reinstallation tip Reinsert the power supply by angling the smaller left end behind the DC controller and
driver PCA. Ensure that the power supply sits behind the black tab (callout 4). Carefully press the power
supply to engage all four tabs.
When you reinstall the power supply PCA, look through the holes on the PCA (callout 5) and make sure that
the contact springs are correctly positioned against the back side of the PCA.

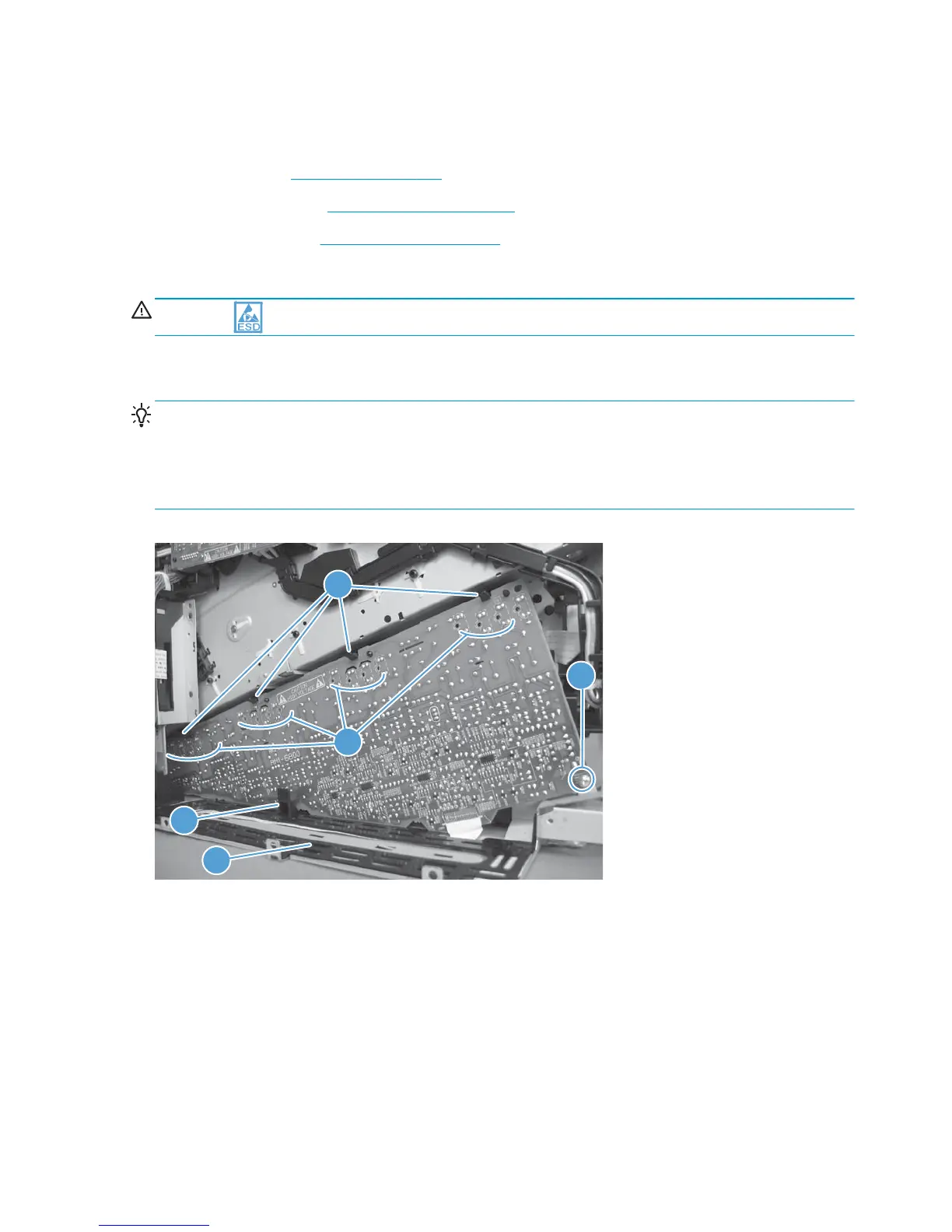

Figure 2-163 Remove the imaging (developing) high-voltage power supply
1
2
3
4
5
202 Chapter 2 Removal and replacement ENWW
