HP M750 series

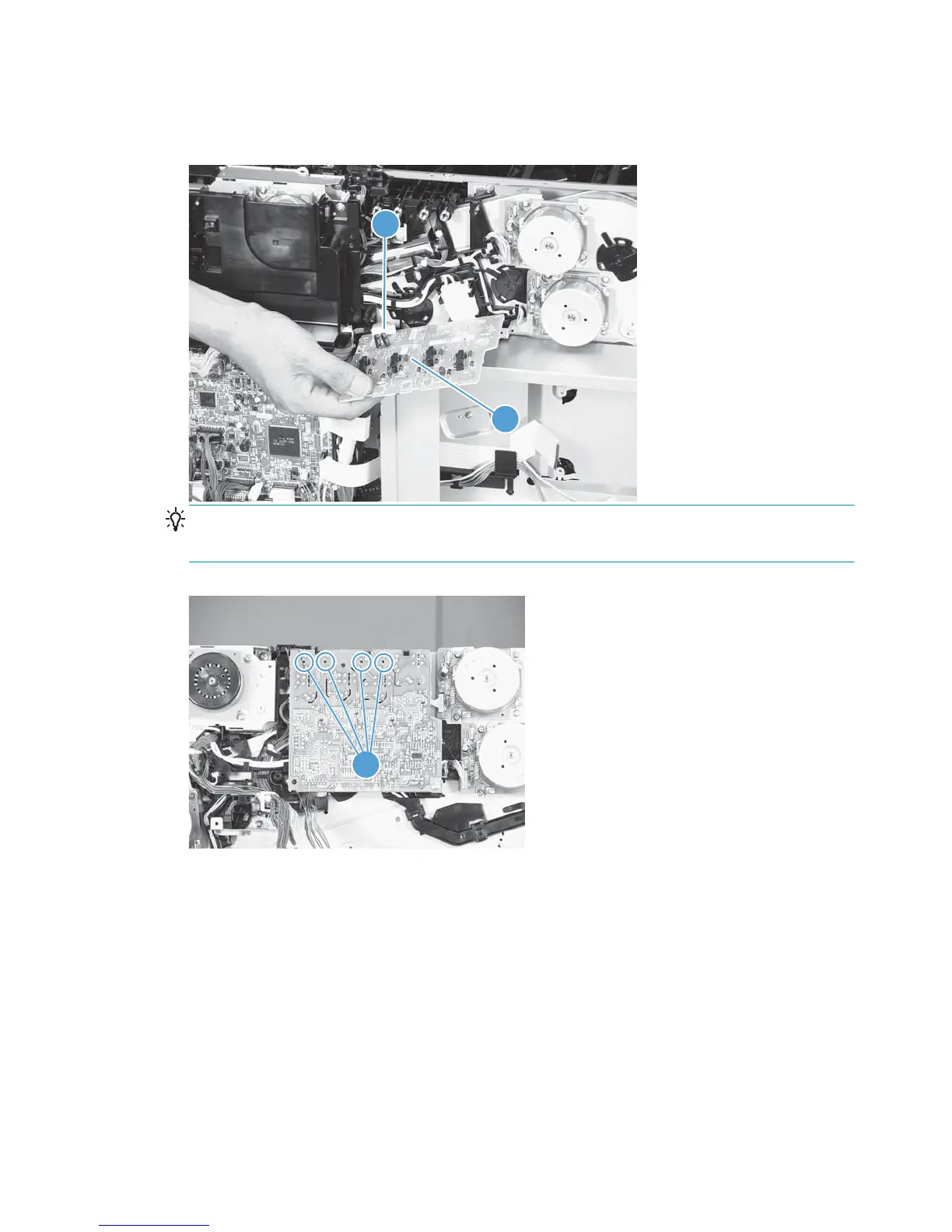

2. Disconnect one connector (callout 2), and then remove the first transfer high-voltage power supply PCA
(callout 1).
Figure 2-165 Remove the first transfer high-voltage power supply (2 of 2)
1
2
Reinstallation tip When you reinstall the power supply PCA, look through the holes on the PCA
(callout 1) and make sure that the contact springs are correctly positioned against the back side of the
PCA.
Figure 2-166 Reinstall the first transfer high-voltage power supply
1
204 Chapter 2 Removal and replacement ENWW
