HP M750 series

Product connections

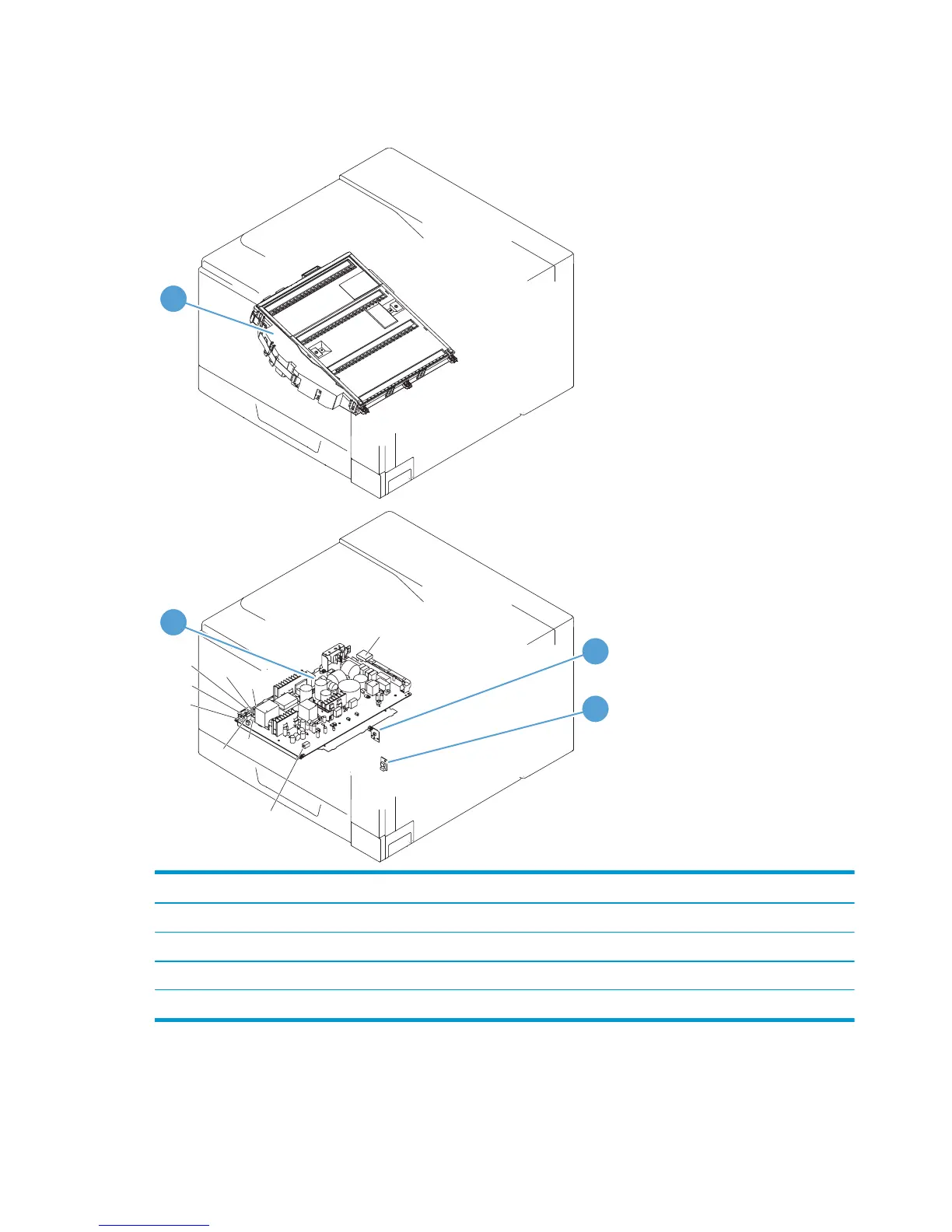

Figure 3-28 Product connections (1 of 6)
J831
J832
J1001
J502
J301
J106
J304
J305
J105
J303
J302
J203
J110
1
2
3
4
Item Description
1 Laser scanner unit
2 Low-voltage power supply
3 Power switch PCA
4 Environment sensor
314 Chapter 3 Solve problems ENWW
